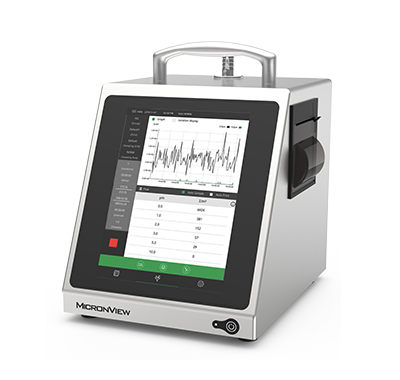

LCD Airborne Particle Counter for Lab

Availability:

LCD Airborne Particle Counter for Lab

Time

Time is used for setting up the system time on the device. Touch the input box on the right of the date, enter the current date. Touch the pull-down menu, select the date format of YY-MM-DD, DD-MM-YY, MM-DD-YY. Touch【】icon to save the settings. The setting of the time is the same as the date.


SPECIFICATIONS



FLOW RATE: A110: 100LPM±3%

A120: 50LPM±3%


A130: 28.3LPM±3%

SIZE RANGE: A110: 0.5µm-25µm

A120, A130: 0.3µm-25µm


SIZE CHANNELS: A110: 0.5µm, 1.0µm, 2.0µm, 3.0µm, 5.0µm, 10.0µm

A120, A130: 0.3µm, 0.5µm, 1.0µm, 3.0µm, 5.0µm, 10.0µm

SIZE RESOLUTION: <15% @ 0.5&micro;m (meets ISO 21501-4)

COUNT EFFICIENCY: A110: 50% &plusmn;20% for 0.5&micro;m, 100% &plusmn;10% for >0.75&micro;m (meets ISO 21501-4 and JIS B9921)

A120, A130: 50% &plusmn;20% for 0.3&micro;m, 100% &plusmn;10%for >0.45&micro;m (meets ISO 21501-4 and JIS B9921)

CONCENTRATION LIMIT: A110: 560,000 particles/ft&sup3;at 10% coincidence loss

A120: 840,000 particles/ft&sup3;at 10% coincidence loss

A130: 1,400,000 particles/ft&sup3;at 10% coincidence loss

ZERO COUNT: <1count/5min

EXHAUST: Internal HEPA filter (>99.997%@0.3&micro;m)

ZONE/ LOCATION: 20,000 rooms and 200,000 locations

SAMPLING TIME: 1 second to 168 hours

CYCLES: 1000 samples on one location

LASER SOURCE: Long life laser

DATA STORAGE: 3.5G, ≥5,000,000 sets of sample records

DISPLAY: 8” LCD capacitive touch screen

LANGUAGE: Chinese, English

DATA RELIABILITY: Compliant with 21 CFR Part 11

REPORTS: Compliant with ISO/EUGMP/CHINESEGMP/Fed Std

CALIBRATION FREQUENCY: Recommend at least once a year

DIMENSIONS (HXWXD): 254x204x263mm

WEIGHT: 6.1Kg (13.45lbs) (without battery)

ENCLOSURE: 316L Stainless Steel

POWER: AC 100-240V, 50 Hz/60 Hz

BATTERY: 10.8V, 9000mAh, rechargeable lithium battery

BATTERY ENDURANCE: A110: running for 4 hours

A120: running for 7 hours


A130: running for 9 hours

MAX POWER: consumption AC 90W

OPERATING CONDITIONS TEMPERATURE:: 5℃-35℃, relative humidity up to 95%

STORAGE CONDITIONS TEMPERATURE: -10℃-40℃, relative humidity up to 98%

SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1,FCC Part 15, Subpart B

WARRANTY: 2 years after activation
