Dual-Flow BioAerosol Sampler for Biosafety Cabinet

Availability:

Dual-Flow BioAerosol Sampler for Biosafety Cabinet

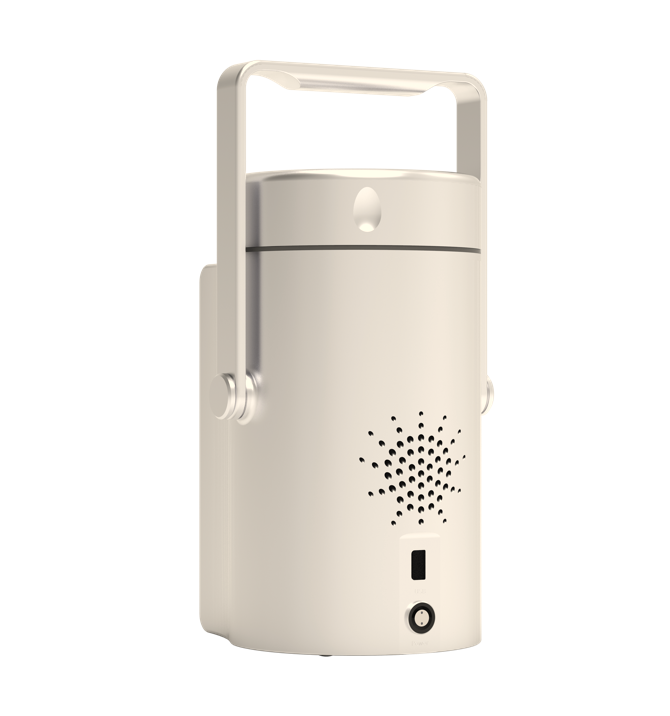

BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.

Flow rate 100L/min

Long battery life ≥10 hours(100L/min)

Data Storage 20,000 sets

Remote sampling 8 m


Biological safety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol dispersion of certain biological particles containing dangerous or unknown characteristics during the experimental operation and processing. It is widely used in microbiology, biomedicine, genetic engineering, biological products and other fields of scientific research, teaching, clinical testing and production, is the laboratory biosafety in the first level of protection barrier in the most basic safety protection equipment .

The working principle of biological safety cabinet is mainly to pump the air inside the cabinet outward, so that the cabinet maintains a negative pressure state, through the vertical airflow to protect staff; the outside air is filtered by the high efficiency air filter into the safety cabinet to avoid processing samples are contaminated; the air inside the cabinet also needs to be filtered by HEPA filter and then discharged into the atmosphere to protect the environment.



Operation Interface

Data

- Intuitive sampling records

- Search function for quick search of records - One-click for exporting and printing

Sampling

- Intelligent sampling mode enables continuous and cyclic sampling

-The sampling process is clear and distinct

LED lighting and beep prompt error

Setup

- Smart Settings mode

- User-friendly input method


Specification


FLOW RATE: 100L/min 200L/min

FLOW RATE ACCURACY: ±2.5%

ZONE: Over 20000 locations

SAMPLING VOLUMES: 1-6000L, 6 default volumes

DELAY: 0-59minutes59seconds

CYCLES: 1-99cycles

INTERVAL: 0-59minutes59seconds

SAMPLING HEAD: Φ0.85mm*280holes

DIMENSIONS: Φ110mm, H: 202mm (without foot mat)

WEIGHT: 2.7kg(6.0lbs)

EXTERNAL SURFACE: Anodized aluminium

POWER: 24V±10% AC adapter

BATTERY: 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours

DATA STORAGE: 20000 sets of sample records

DISPLAY: 4.3" capacitive touch screen

LANGUAGE: Chinese, English

CALIBRATION FREQUENCY: Recommend once a year

OPERATING CONDITIONS TEMPERATURE:5℃-30℃, relative humidity up to 80%

STORAGE CONDITIONS TEMPERATURE: 0℃-40℃, relative humidity up to 80%

SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1

WARRANTY: 2 years after activation
