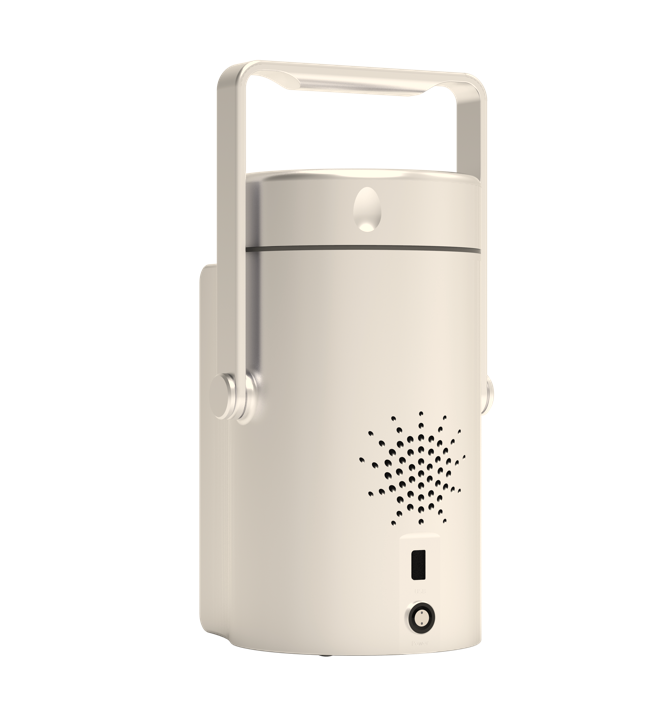

Touch Screen Dual-Flow BioAerosol Sampler for Cleanroom

Product Features

4.3’’ capacitive touchscreen,rapid response

All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion

Long Battery Life

100L/min≥10hours (60m³）

200L/min≥4hours (48m³）

Flow Accuracy

±2.5%（100L/min）

±3% (200L/min）

Compliance with FDA21 CFR Part 11

Remote Sampling

Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)

*The remote/isolator sampling can only support the flow rate of 100L/min*

Operation Interface

Data

- Intuitive sampling records

- Search function for quick search of records - One-click for exporting and printing

Sampling

- Intelligent sampling mode enables continuous and cyclic sampling

-The sampling process is clear and distinct

LED lighting and beep prompt error

Setup

- Smart Settings mode

- User-friendly input method

Specification

FLOW RATE： 100L/min    200L/min

FLOW RATE ACCURACY： ±2.5%

ZONE： Over 20000 locations

SAMPLING VOLUMES： 1-6000L, 6 default volumes

DELAY： 0-59minutes59seconds

CYCLES： 1-99cycles

INTERVAL： 0-59minutes59seconds

SAMPLING HEAD： Φ0.85mm*280holes

DIMENSIONS： Φ110mm, H: 202mm (without foot mat)

WEIGHT： 2.7kg(6.0lbs)

EXTERNAL SURFACE： Anodized aluminium

POWER： 24V±10% AC adapter
