FLOW RATE： 28.3LPM±5%
SIZE RANGE： 0.1µm-10.0µm
SIZE CHANNELS： 0.1µm, 0.2µm, 0.3µm, 0.5µm, 1.0µm, 5.0µm
COUNT EFFICIENCY： 50% ±20% for 0.1µm, 100% ±10% for >0.15µm (meets ISO 21501-4 and JIS B9921)
LASER SOURCE: Long life laser
FLOW RATE CONTROL: Automatic closed-loop
CONCENTRATION LIMIT: 4,000,000 particles/ft³ at 10% coincidence loss
ZERO COUNT： <1count/5min
EXHAUST： Internal HEPA filter (>99.999%@0.1µm)
ZONE/ LOCATION： 20,000 zones and 200,000 locations
SAMPLING TIME： 1 second to 168 hours
DELAY: 0 second -99 hours 59minutes 59seconds
CYCLES： 1 - 1000 samples on one location
Interval：0 second -99 hours 59minutes 59seconds

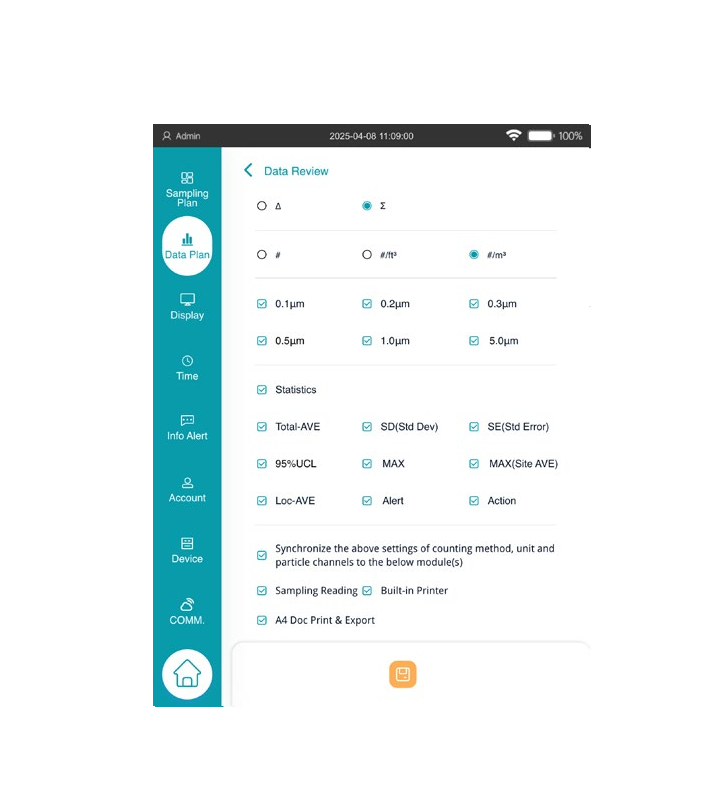

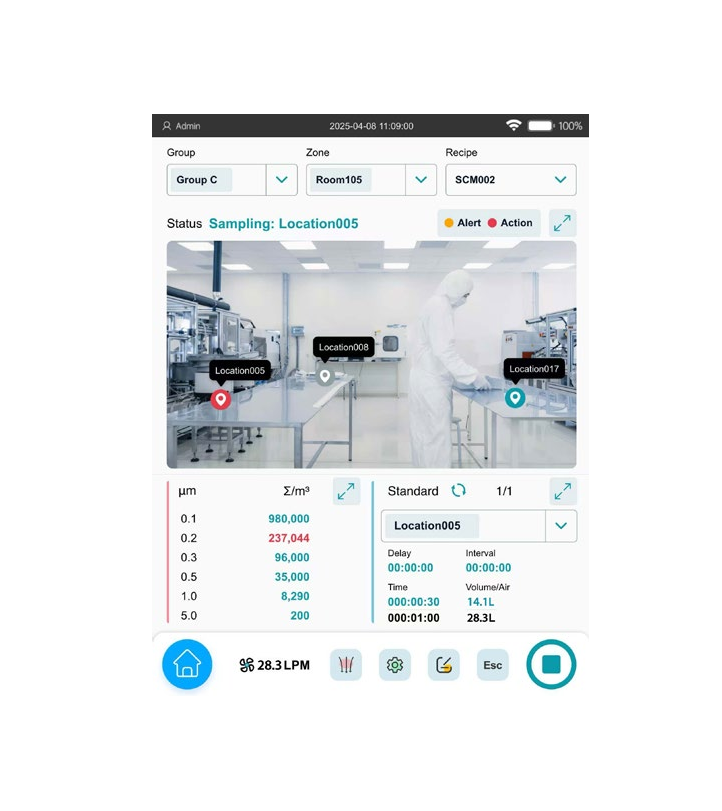

Sampling Mode: Manual, auto, cumulative count Σ/ differential count Δ or concentration
DATA STORAGE： 3.0 GB, 5,000,000 sets of sample data can be stored
DISPLAY： 8" LCD capacitive touch screen
LANGUAGE： Chinese, English
COMMUNICATION: RJ45, USB, SENSER-HUB, WIFI(Optional)
DATA RELIABILITY： Compliant with 21 CFR Part 11
REPORTS： Compliant with ISO/EU GMP/CHINA GMP/Fed Std
EXPORT FILE: PDF File or EXCEL File
DATA SECURITY: Multi-level authority management, customized permissions are avaliable
CALIBRATION FREQUENCY： Recommend once a year
DIMENSIONS (HXWXD)： 10x7.87x10.39 in, 255x200x264 mm (with handle and foot mat)
WEIGHT： 6.0Kg (13.2lbs) (without battery); 7.0Kg (15.3lbs) (with 2 batteries)
ENCLOSURE： 316L Stainless Steel and anodized aluminum
POWER： AC 100-240V, 50 Hz/60 Hz
BATTERY： 10.8V, 9000mAhx2, rechargeable lithium battery
OPERATING CONDITIONS: 5-35℃(41-95℉), 5-90%RH non-condensing
STORAGE CONDITIONS： 0-40℃(32-104℉), 5-95%RH non-condensing
Safety: EN 61010-1:2010+A1:2019+AC:20, EN IEC 61326-1:2021, EN 61326-1:2013
WARRANTY： 12 months (after activition or 6 months from ex-factory, whichever comes first)，laser-10 year warranty
