Electric High Pressure Diffuser-Economic (EHPD-ECO) is used for decompression of nitrogen, carbon dioxide, argon and other inert gases under high pressure, only use in non-flammable and non-explosive area.




Flow

Relative Pressure

≥2LPM

1-7bar

Gas Type

Portable

Air, N₂, CO₂, O₂, Ar

0.91Kg (1.98lbs)
Availability:

PRODUCT DETAILS
SPECIFICATIONS
RESOURCES
VIDEO

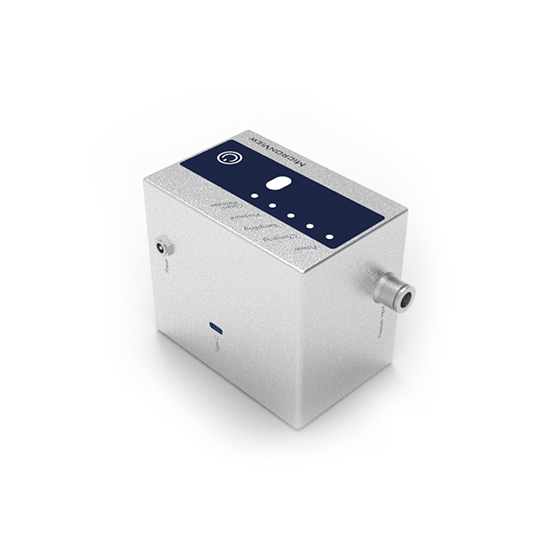

EXTERNAL VIEW AND INTERFACE




PRINCIPLE


  • Operation process of Electric High Pressure Diffuser-Economic (EHPD-ECO): when the back-end sampling device starts, the compressed gas to be tested is decompressed into atmospheric gas in real time and dynamically and is delivered to the back-end sampling device. When the sampling  device stops, the EHPD-ECO closes the gas output automatically.



  • The EHPD-ECO can be coupled with particle counter, air sampler and any other active sampling devices for detecting and analyzing the atmosphere, nitrogen, carbon dioxide, argon, oxygen and other inert gases under high pressure, only use in the non-flammable and non-explosive area.



APPLICATION


Particle detection for compressed gas

1. High compatibility

2. No overflow

3. Accurate and reliable





SPECIFICATIONS


  • GAS TYPE： Air, N2, CO2, O2, Ar and other inert gases

  • FLOW RATE： ≥2LPM

  • INLET RELATIVE PRESSURE： 1-7bar

  • LIMITED RELATIVE PRESSURE： > 10bar

  • INLET TUBE DIAMETER INNER DIAMETER: 5mm, outer diameter: 8mm

  • OUTLET TUBE DIAMETER INNER DIAMETER: 6mm, 8mm, 12mm, 14mm, 16mm, 20mm selectable

  • DIMENSIONS： 100 (H)x70(W)x90 (d)mm (with foot mat）

  • WEIGHT： 0.82kg (1.8lbs)

  • EXTERNAL SURFACE： Anodized aluminium

  • POWER： AC 100-240V, 50/60Hz

  • BATTERY： 3×3.7V, 3100mAh, rechargeable lithium battery, running for over 6 hours

  • MAXIMUM POWER CONSUMPTION： 3.3W

  • OPERATING CONDITIONS TEMPERATURE: 5℃-30℃, relative humidity up to 80%, air pressure: 86-106KPa

  • STORAGE CONDITIONS TEMPERATURE: 0℃-40℃, relative humidity up to 80%

  • WARRANTY： 2 years
