Airborne Particle Counter-Remote (A5301)

Airborne Particle Counter-Remote (A5301)

Enables real-time data transmission to EMC System software or other existing management systems
Long life laser

Flow Rate Data Storage

28.3 LPM±5% 1,440 sets（by default）

Model:
A5301

Availability:

PRODUCT DETAILS

SPECIFICATIONS

RESOURCES

The remote APC utilizes a built-in blower-free design, achieves precise flow control through two configurations: external blower unit (with an integrated flow meter for independent, high-accuracy sampling) or a central pump (with restriction orifice), significantly enhancing deployment flexibility to meet distributed monitoring needs in large-scale cleanroom. It is specifically optimized for continuous particle monitoring in production facilities across industries such as electronics manufacturing, pharmaceutical production, and medical devices.

The modular architecture supports rapid deployment and seamless compatibility with multiple communication protocols, positioning it as the ideal solution for particle monitoring in high-standard cleanroom.

FLEXIBLE CONFIGURATION & RELIABLE PERFORMANCE

Independent sampling control via optional external blower units
Seamless maintenance continuity: Rapid swap to backup blower units ensures uninterrupted operation of the particle counter

FEATURES

Size channel: 0.3μm, 0.5μm, 5.0μm
Flow rate: 28.3LPM ± 5%
Communication: RJ45, RS485
Data Storage: by default, 1440 groups of data are cached
Status Light: power, sampling, flow rate
Alarm Light: laser error, flow rate error
Power: PoE or 100-240V,50Hz/60HzAC to 24VDC input power supply

APPLICATION

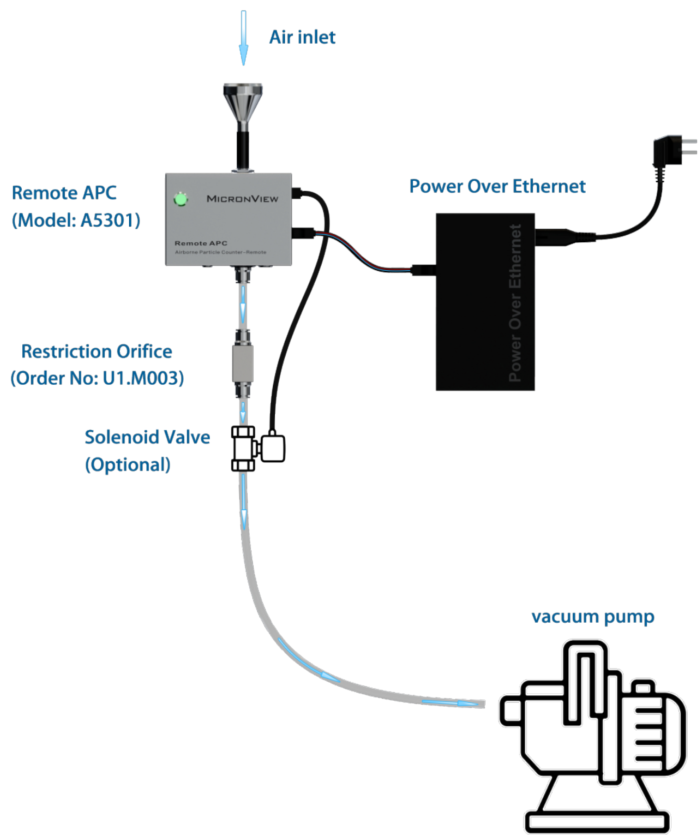

Appliction 1 Central Pump Solution

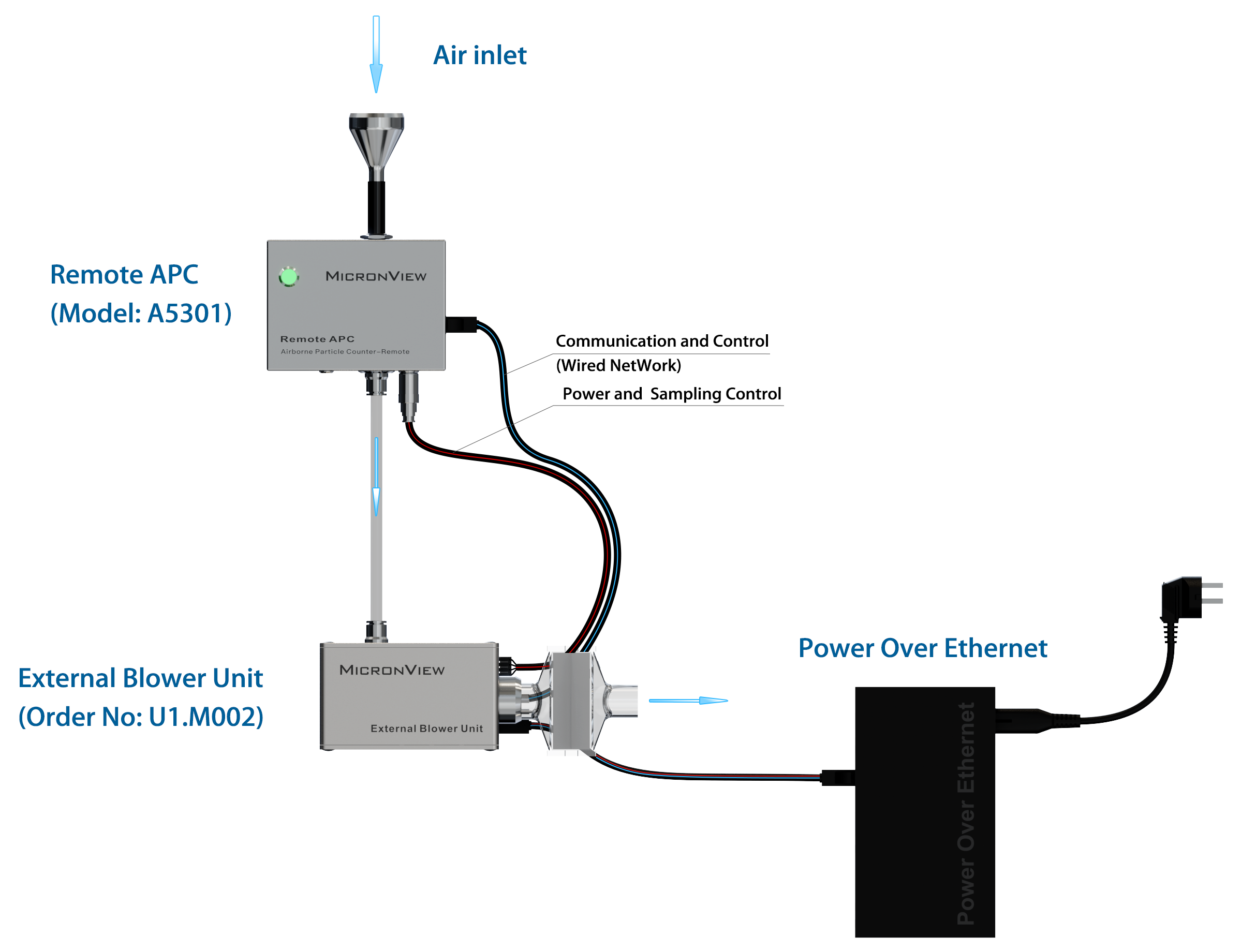

Remote APC-External Blower Unit

Appliction 2 External Blower Unit Solution

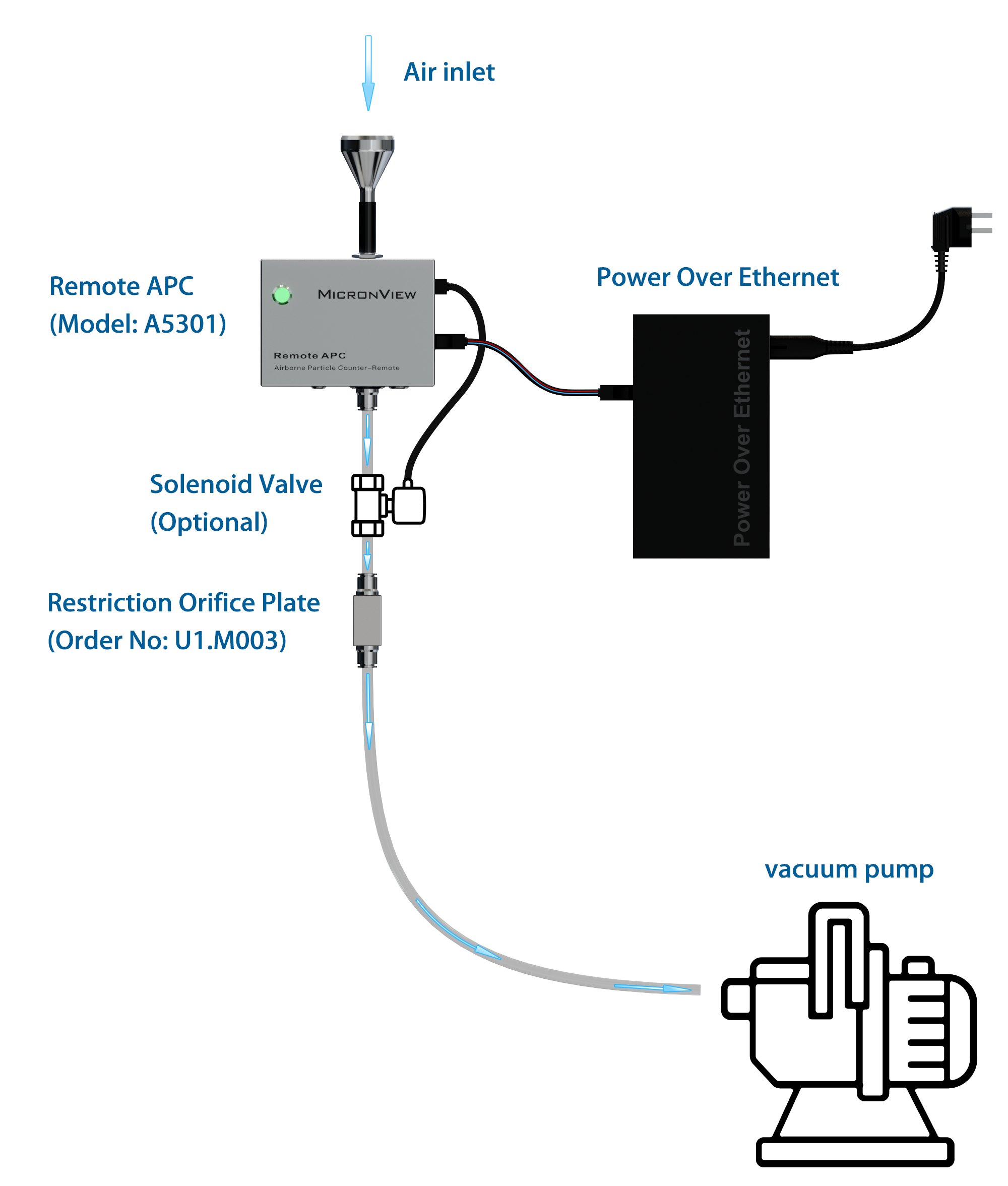

Remote APC-Central Pump

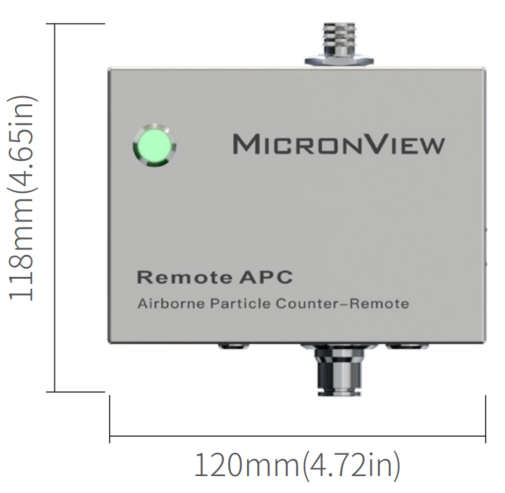

PRODUCT DIMENSIONS

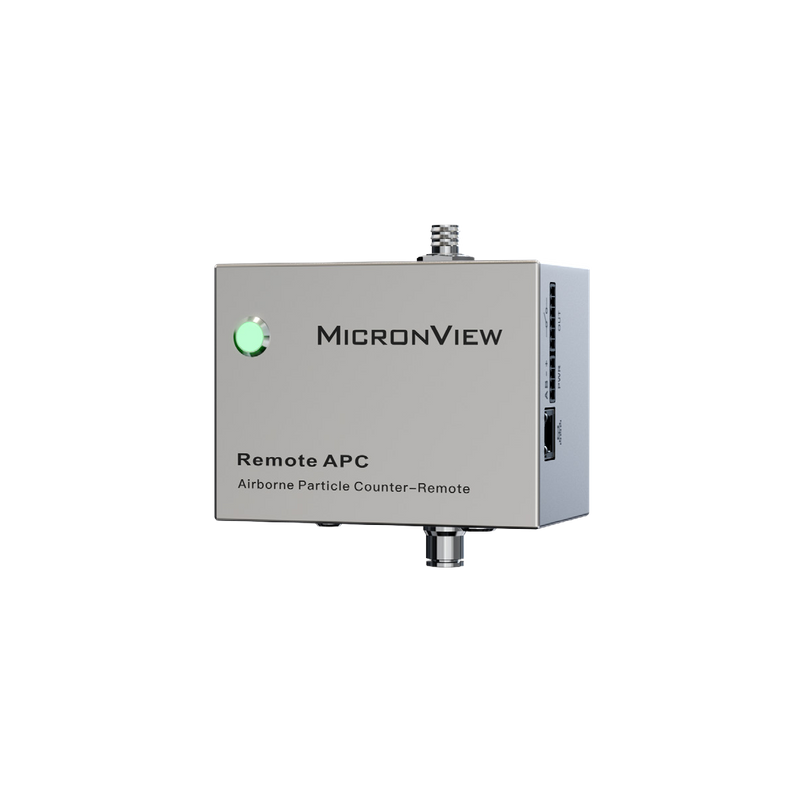

Lateral View Front View

SPECIFICATION SHEET

Specification	Airborne Particle Counter-Remote \| Remote APC
Specification	Airborne Particle Counter-Remote \| Remote APC
Flow Rate	28.3LPM ± 5%
Size Range	0.3µm to 25µm
Size Channel	0.3µm, 0.5µm, 5.0µm
Size Resolution	<15% @ 0.5µm (ISO 21501-4)
Count Efficiency	50% ±20% at 0.3µm, 100% ±10% for particles >0.45µm (ISO 21501-4 and JIS B9921)
Concentration Limit	450,000 particles/ft³ at 10% coincidence loss
Zero Count	<1count/5min
Laser Source	Long-life laser
Communication	RJ45, RS485
Data Storage	By default, 1,440 group of records are cached
Alarm	Alarm light
Display	Status light
Calibration Frequency	Recommended once a year
Calibration Standard	Compliant with ISO 21501-4
Dimensions (H×W×D)	118×120×70 mm/ 4.65×4.72×2.76 in
Weight	0.74 kg/ 1.63 lbs
Enclosure	316L stainless steel
Power	PoE; 100-240V, 50Hz/60Hz AC to 24V DC input, plug compatible with standard interface types
Max Power Consumption	Sensor <13w, connected external power unit <30w
Operating Conditions	Operating temperature: 5℃-35℃ (41℉-95℉) Relative humidity: 5%-90%, non-condensing
Storage Conditions	Storage temperature: 0℃-40℃ (32℉-104℉) Relative humidity: 5%-95%, non-condensing
Safety	EN 61010-1:2010, EN 61326-1:2013, EN IEC 61326-1:2021
Warranty	24 months (starting from the date of activation of the product or 6 months after delivery, whichever comes frst)

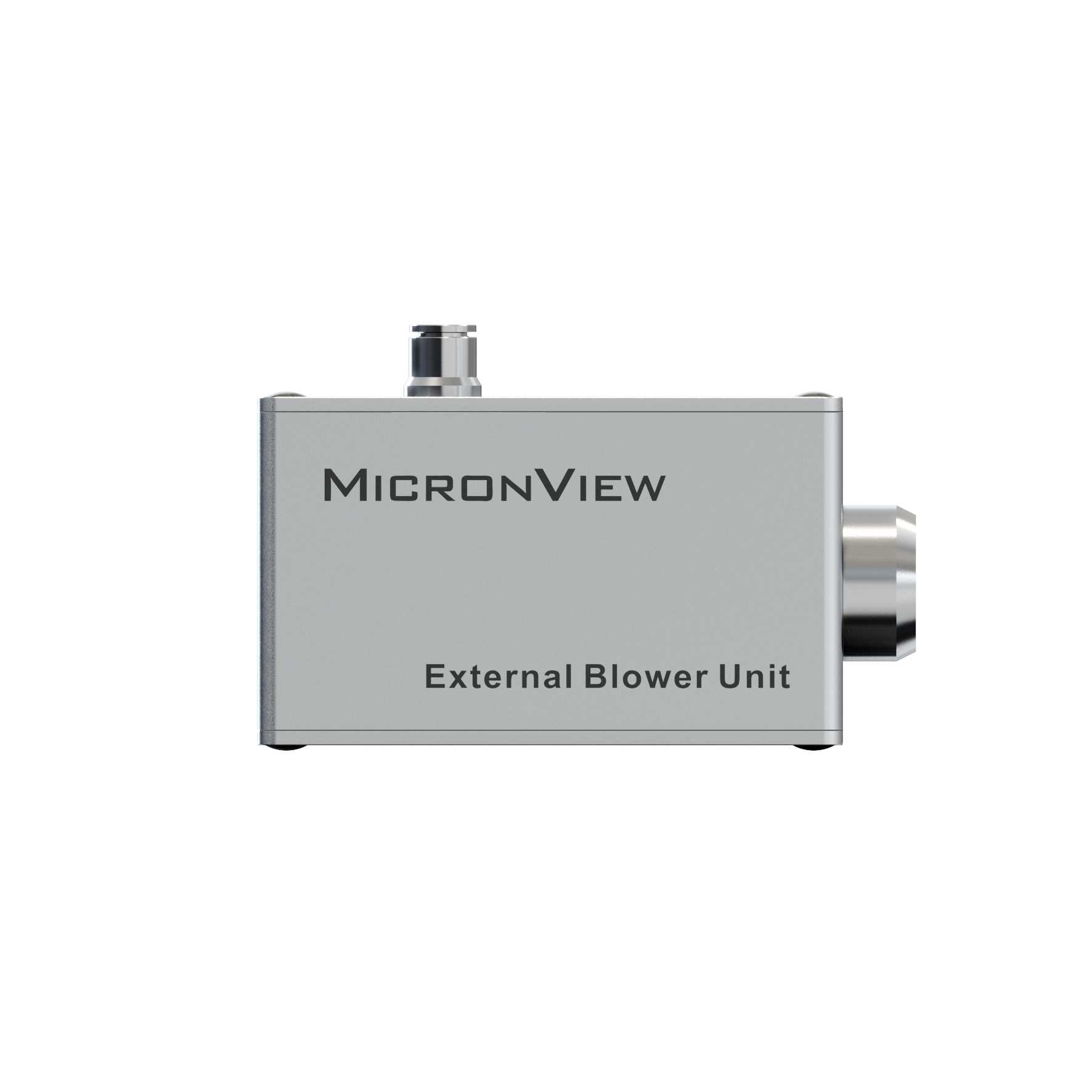

Specification	External Blower Unit


Dimensions(HxWxD)	71×135×104mm/2.80×5.32×4.09 in
Weight	0.74Kg/1.63lbs
Enclosure	Aluminium alloy
Operating Conditions	Operating temperature: 5-35℃ (41℉-95℉); Relative humidity: 5-90% non-condensing
Storage Conditions	Storage temperature: 0-40℃ (32℉-104℉); Relative humidity: 5-95% non-condensing
Warranty	12 months (starting from the date of activation of the product or 6 months after delivery, whichever comes frst)

ORDERING INFORMATION

Name	Model	Order No.
Airborne Particle Counter-Remote \| Remote APC	A5301	MACHA5301
External Blower Unit	N/A	U1.M002
Restriction Orifce (28.3LPM)	N/A	U1.M003
Isokinetic probe (28.3LPM)	N/A	S1.0282

Notes:

1.The isokinetic probe includes the isokinetic probe itself and a dust cover.

Remote APC A5301 Brochure V1.0 May2025.pdf
