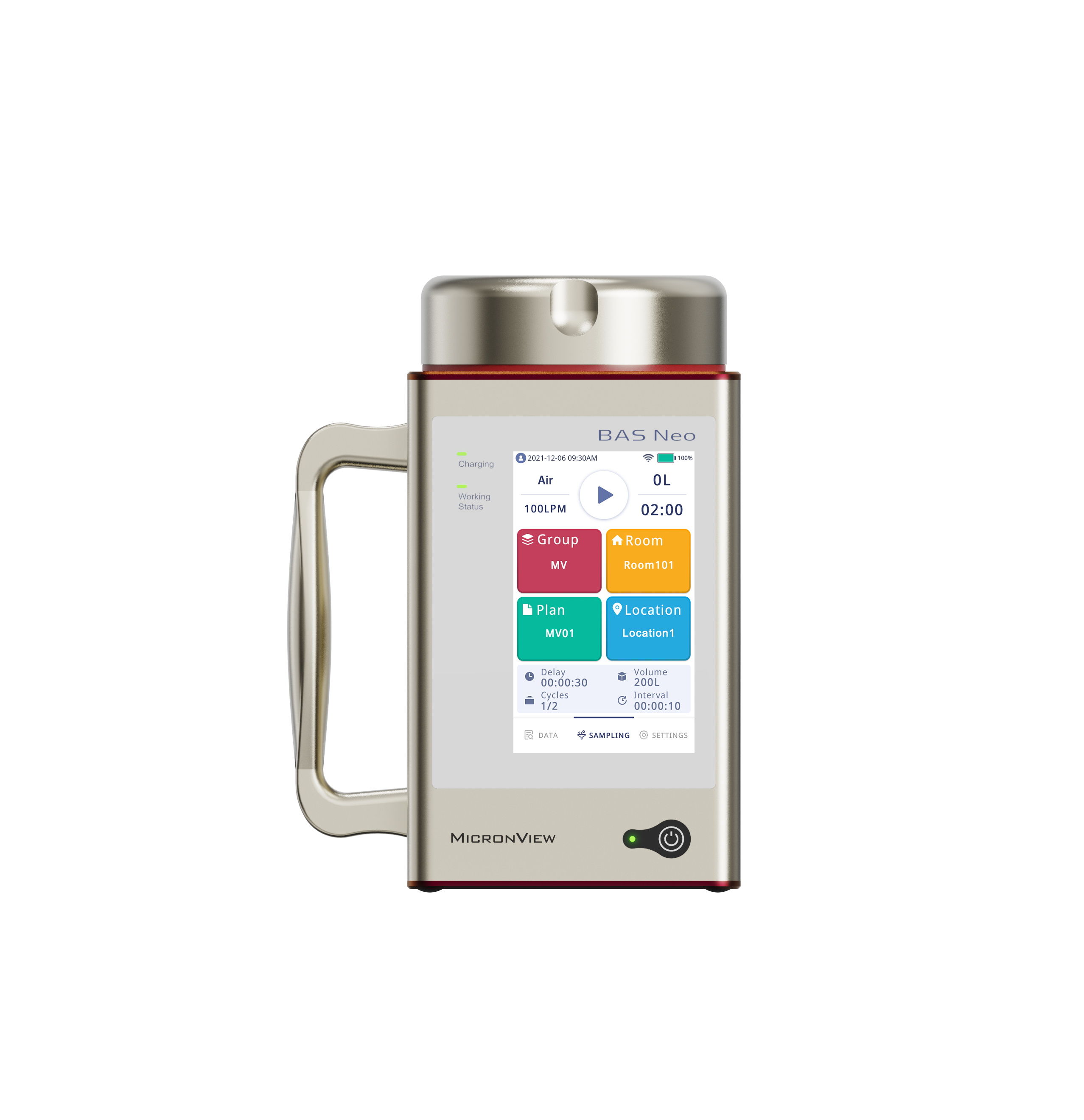

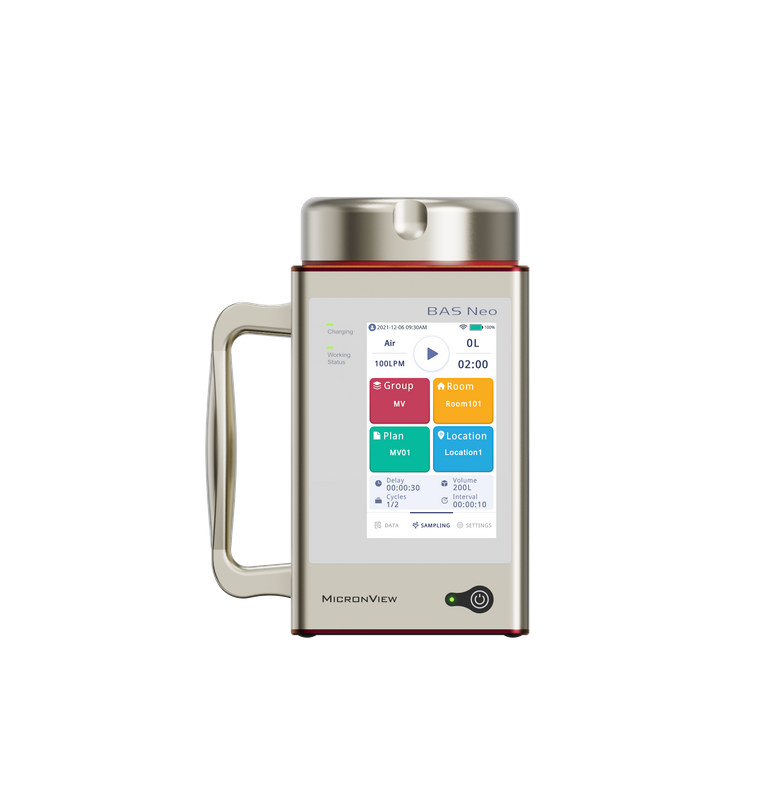

Specification | BioAerosol Sampler Neo | BAS Neo |

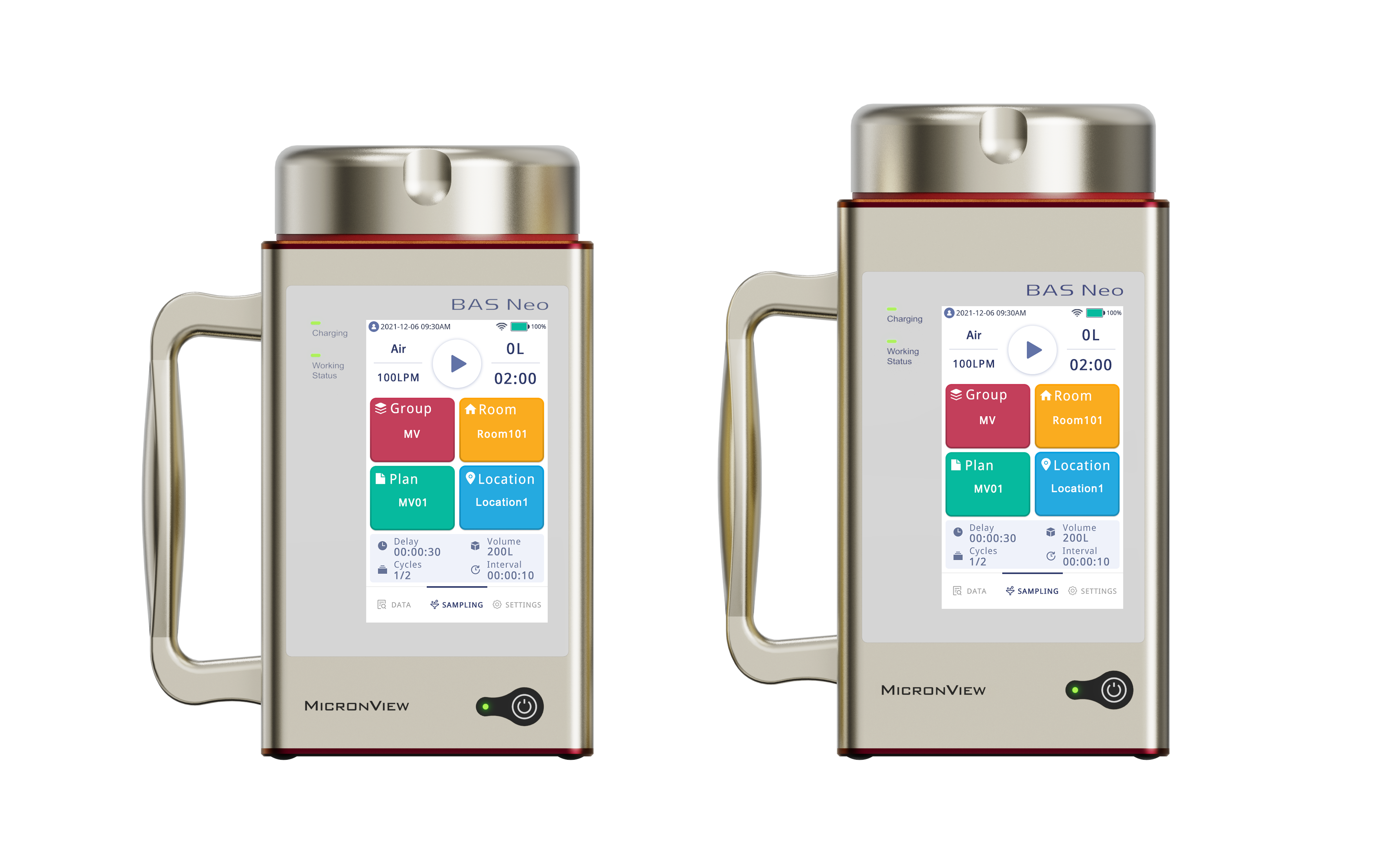

C320 | C320F |
Flow Rate | 100LPM±3%；200LPM±3% |
Flow Rate Control | Built-in mass flow meter |
Exhaust Filtration | N/A | Exhaust HEPA filter efficiency ＞99.999% for particles @0.3μm |
Sampling Plan | 20,000 groups, 20,000 rooms, 500 locations for each room, up to 20,000 locations |
Sampling Volumes | 1-6,000L |
Delay | 0-23 hours 59 minutes 59 seconds |
Cycles | 1-999 cycles |
Interval | 00:00:00, 5 seconds-23 hours 59 minutes 59 seconds |
Sampling Head | Φ0.60 mm*280 holes (100L/min)；Φ0.70mm*400 holes (200L/min) ( Anodized aluminum, 316L stainless steel material available, customizable sampling head ) |
Dimensions, Weight | 220.5*163*120mm/8.68*6.42*4.72in, 2.5Kg/5.51lbs | 235.5*163*120mm/9.27*6.42*4.72in, 2.55Kg/5.62lbs |
Enclosure | Anodized aluminium |
Power | AC 100-240V, 50 Hz/60 Hz |
Battery | 10.8V, 6800mAh rechargeable lithium battery |

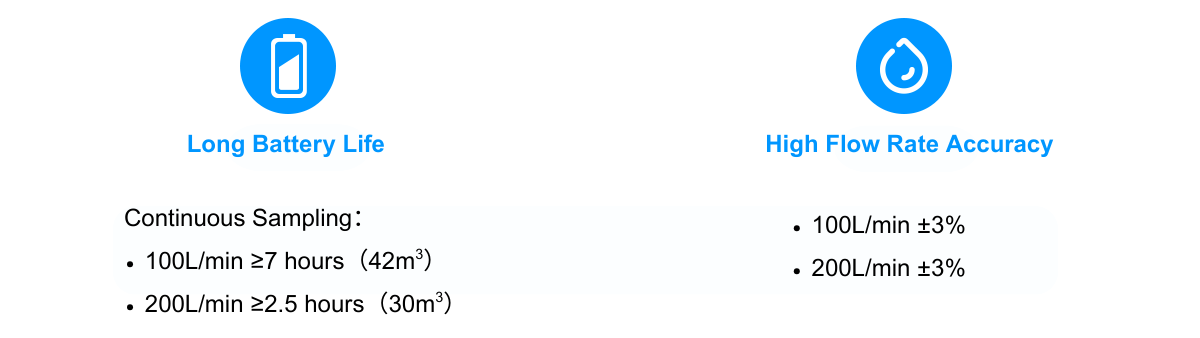

Battery last ≥7 hours (100L/min) Battery last ≥2.5 hours (200L/min) | Battery last ≥6.5 hours (100L/min) Battery last ≥2 hours (200L/min) |
Communication | USB, WIFI |
Application Extension | Connect with the Airborne Particle Counter (APC) and BioAerosol Monitoring System (BAMS) to collect contaminated samples in real time |

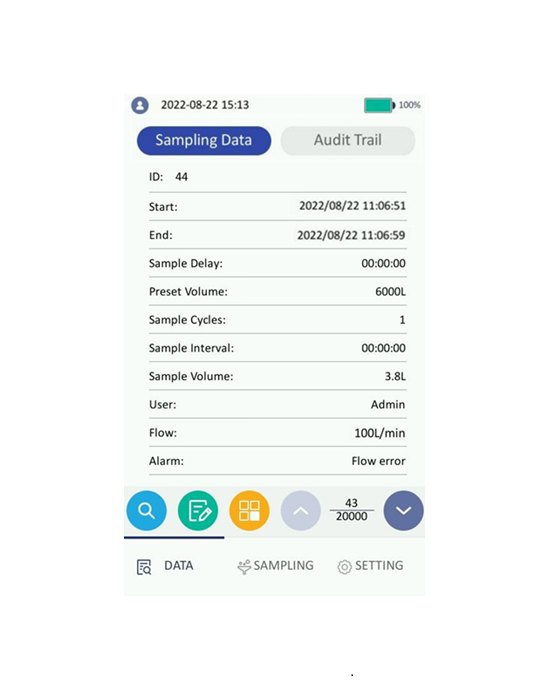

Data Storage | 20,000 sets of records |
Alarm | LED lighting and beep |

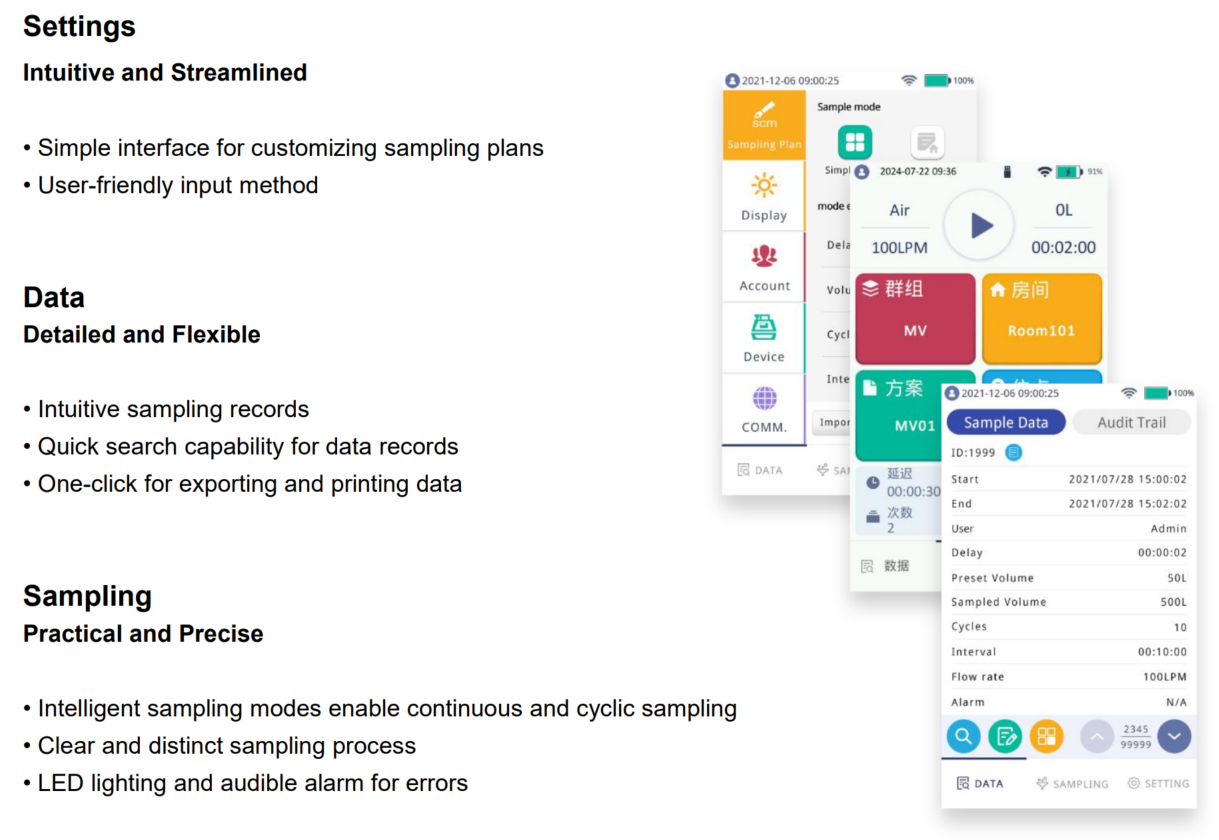

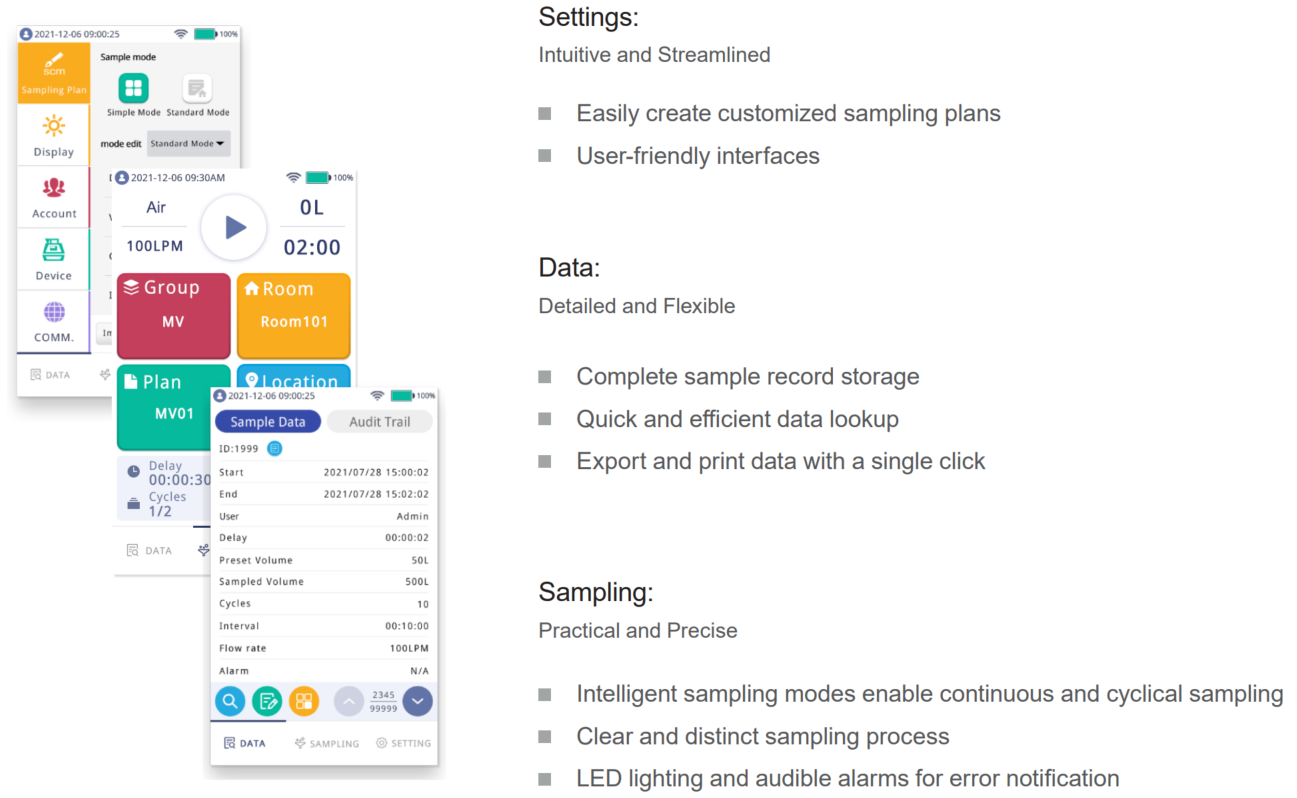

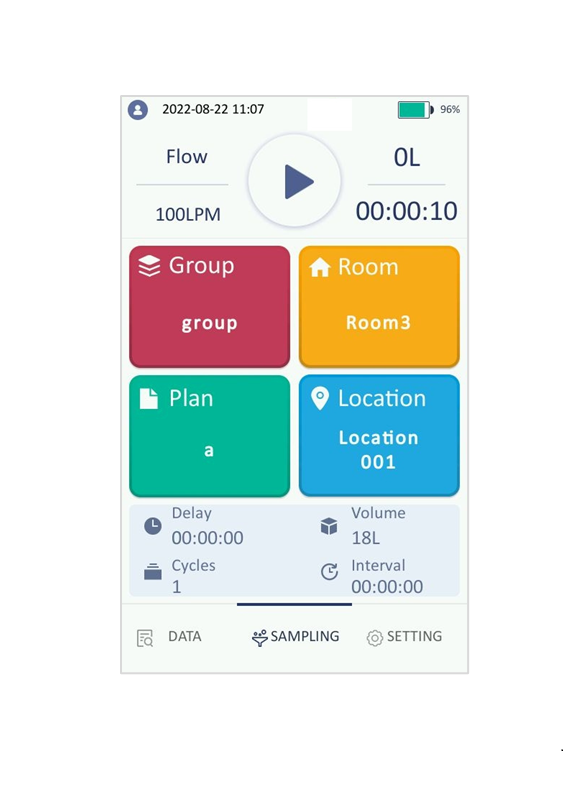

Display | 5" capacitive touch screen |
Language | English, Chinese |
Calibration Frequency | Annual calibration is recommended |
Operating Conditions | Temperature: 5°C-35°C(41℉-95℉), 5-90% RH non-condensing |
Storage Conditions | Temperature: 0°C-40°C(32℉-104℉), 5-95% RH non-condensing |
Warranty | 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
