GAS TYPE: Air, Nitrogen, Carbon Dioxide, Argon, Oxygen
FLOW RATE：Air: 100L/min±2.5%, 200L/min±3% Compressed Gas: 100L/min±5%
FLOW RATE CONTROL: Built-in differential pressure sensor
EXHAUST FILTRATION: Built-in HEPA, filtration efficiency: >99.999% @0.3μm
SAMPLING PLAN： 20,000 groups, 20,000 rooms, 500 locations for each room, up to 20,000 locations
SAMPLING VOLUMES： 1-6,000L, 20 default volumes
DELAY： 0-23 hours 59 minutes 59 seconds
CYCLES： 1-999cycles
INTERVAL： 00:00:00，5 seconds-23 hours 59 minutes 59 seconds
ACCOUNT NUMBER: Up to 20,000 accounts
SAMPLING HEAD：
Screw-in Installation: Φ0.60mm*280holes (100L/min), Anodized aluminum
Φ0.70mm*400holes (200L/min), Anodized aluminum
(optional316Lstainlesssteelavailable, customizable sampling head)
Magnetic Suction Installation: Φ0.60mm*280holes (100L/min), 2205 duplex stainless steel material
Φ0.70mm*400holes (200L/min), 2205 duplex stainless steel material
The installation method of the sampling head can be specially customized according to the user's requirements.
DIMENSIONS (HxWxD)： 235.5*163*120 mm/9.27*6.42*4.72 in
WEIGHT： 2.55kg (5.62lbs)
EXTERNAL SURFACE： Anodized aluminum
POWER： 24V±10% AC adapter

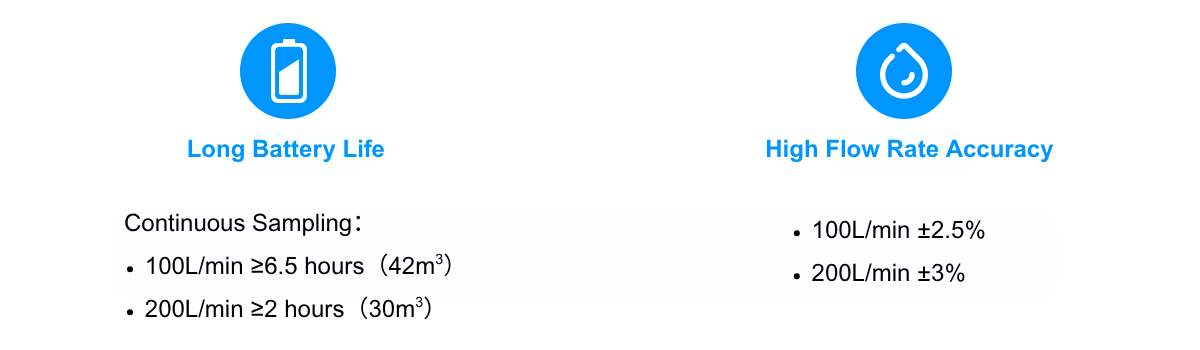

BATTERY： 10.8V, 6800mAh rechargeable lithium battery, 100L/min: running for over 6.5 hours, 200L/min:running for over 2 hours
APPLICATION EXTENSION: Connect with Airborne Particle Counter (APC) and BioAerosol Monitoring System(BAMS) to collect the biological contamination sample in real time.
DATA STORAGE： 20,000 sets of sample records
ALARM: LED lighting and beep
DISPLAY： 5" capacitive touch screen
LANGUAGE： Chinese, English
CALIBRATION FREQUENCY： Recommend once a year
OPERATING CONDITIONS：5-35℃(41-95℉), 5-90%RH non-condensing
STORAGE CONDITIONS： 0-40℃(32-104℉), 5-95%RH non-condensing
SAFETY： EN 61010-1:2010+A1:2019, EN 61326-1:2013, EN 61326-2-2:2013
WARRANTY： 24 months (calculated from the date of product activation or 6 months after the date of manufacture, whichever comes first)
