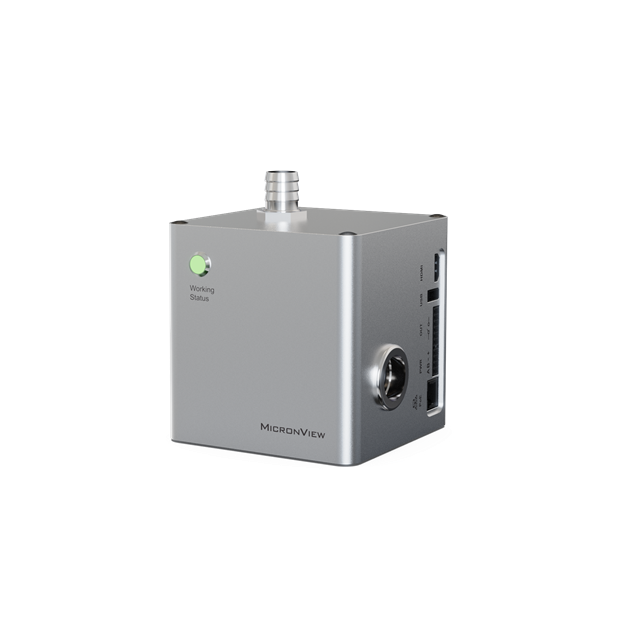

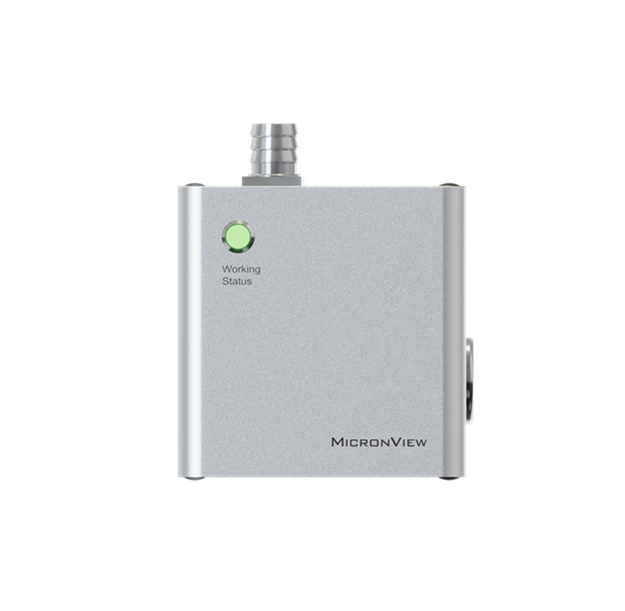

BioAerosol Sampler-Remote (C530B)

SPECIFICATION SHEET

Flow Rate:    28.3LPM ± 4%

Flow Rate Control:    Built-in differential pressure sensor, closed-loop auto control

Sampling Head:    Φ0.32 mm*280 holes, 316L stainless steel, 0.93 kg/ 2.05 lbs (D50: 0.79)

Exhaust:    External HEPA Filter (>99.999% @ 0.3 µm)

Blower:     Built-in blower

Display:    Status indicator, supports external 5-inch LCD capacitive touch screen

Dimensions (H×W×D):    148.3×120×120 mm/ 5.84×4.72×4.72 in

Weight:    1.25 Kg/ 2.76 lbs

Enclosure:    Aluminum oxide

Power:

PoE Power Supply:

Adapter Power Supply:

100‒240V, 50/60Hz AC to 24V DC input power supply, the other end connector must be compatible with various standard interface types

Max Power Consumption*:    Rated power: 20W (30W, max)

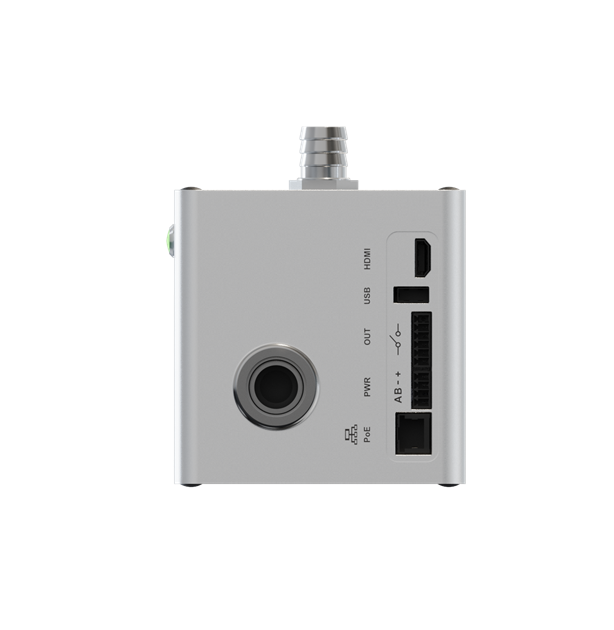

Communication:    RJ45, RS-485, HDMI, USB

Transmission Protocol:    Modbus TCP

Data Storage:    4GB, Default buffer: 1,000,000 sampling records, conffgurable up to 5,000,000

Alarm:    Indicator light alarm, supports external sound and light alarm

Language:    English, Chinese

Calibration Frequency:    Recommended once a year

Operating Conditions:    Operating temperature: 5℃-35℃ (41℉-95℉); Relative humidity: 5%-90%, non-condensing

Storage Conditions:    Storage temperature: 0℃-40℃ (32℉-104℉); Relative humidity: 5%-95%, non-condensing

Safety:    EN 61010-1:2010, EN 61326-1:2013, EN IEC 61326-1:2021

Warranty:    24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first)

*Note: When using PoE power supply, it is necessary to ensure that the total power of the PoE switch is greater than the sum of the maximum power of all terminal devices.

ORDERING INFORMATION
