Product Details

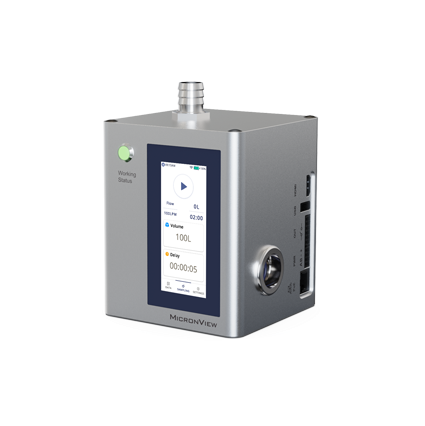

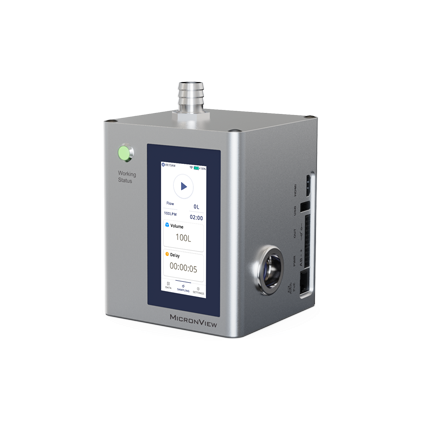

BioAerosol Sampler-Remote (C530BS)

Flow Rate Data Storage

28.3 LPM ± 4% Default buffer: 1,000,000 sets

Model:
C530BS

Availability:

PRODUCT DETAILS

SPECIFICATIONS

RESOURCES

The BioAerosol Sampler Remote Series offers high-performance samplers designed for industries with stringent cleanliness standards, such as pharmaceuticals, biotechnology, food and beverage, cosmetics, and medical institutions. The C530BS model feature a built-in high-precision differential pressure flow sensor, a built-in blower, and a touch screen. The Remote BAS complies with ISO 14698-1 and EU GMP Annex 1 standards.

PERFORMANCE FEATURES

Flow rate: 28.3 LPM ± 4%
Touch screen and built-in blower for streamlined operation, capable of storing up to 1,000,000 sample datasets
Optional 316L stainless steel enclosure, resistant to common cleanroom disinfectants
LED indicators, audible and visual alarms for fow rate error, network communication, and device failures
Optional robotic arm for automated petri dish replacement, enabling unmanned operation

屏幕截图 2024-10-25 152831

SAMPLING HEAD FEATURES

Used for microbial air sampling in isolators, biosafety cabinets, horizonal laminar-flow clean workbench and other critical areas
Based on the Andersen impact principle, air is impacted on the agar surface through the perforated cover at a speed of approximately 21 m/s
Autoclavable and VHP-resistance
Recommended petri dish diameter: Φ90mm

屏幕截图 2024-10-25 155956

INSTALLATION MODE

The remote BAS can be installed with or without a protective enclosure.

installation mode

SPECIFICATION SHEET

Flow Rate: 28.3LPM ± 4%

Flow Rate Control: Built-in differential pressure sensor, closed-loop auto control

Sampling Head: Φ0.32 mm*280 holes, 316L stainless steel, 0.93 kg/ 2.05 lbs (D50: 0.79)

Exhaust: External HEPA Filter (>99.999% @ 0.3 µm)

Blower: Built-in blower

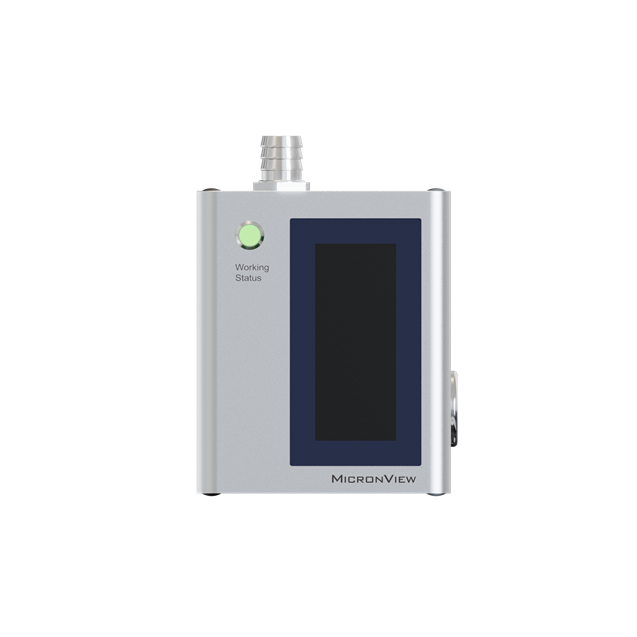

Display: 4-inch LCD capacitive touch screen, status indicator

Dimensions (H×W×D): 170.3×120×120 mm/ 6.71×4.72×4.72 in

Weight: 1.49 Kg/ 3.28 lbs

Enclosure: Aluminum oxide

Power:

PoE Power Supply:

lEEE 802.3bt (Type 3 /PoE++, Type 4)

Adapter Power Supply:

100‒240V, 50/60Hz AC to 24V DC input power supply, the other end connector must be compatible with various standard interface types

Max Power Consumption*: Rated power: 20W (30W, max)

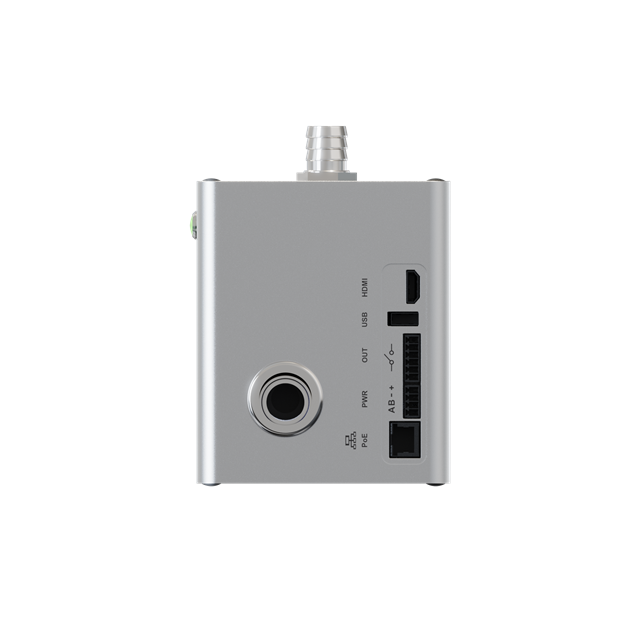

Communication: RJ45, RS-485, HDMI, USB

Transmission Protocol: Modbus TCP

Data Storage: 4GB, Default buffer: 1,000,000 sampling records, conffgurable up to 5,000,000

Alarm: Indicator light alarm, supports external sound and light alarm

Language: English, Chinese

Calibration Frequency: Recommended once a year

Operating Conditions: Operating temperature: 5℃-35℃ (41℉-95℉); Relative humidity: 5%-90%, non-condensing

Storage Conditions: Storage temperature: 0℃-40℃ (32℉-104℉); Relative humidity: 5%-95%, non-condensing

Safety: EN 61010-1:2010, EN 61326-1:2013, EN IEC 61326-1:2021

Warranty: 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first)

*Note: When using PoE power supply, it is necessary to ensure that the total power of the PoE switch is greater than the sum of the maximum power of all terminal devices.

Specification	Remote Sensor Protective Enclosure
	PA520S	PA520
Dimensions (HxWxD)	280×280×161 mm/11.02×11.02×6.34 in
Enclosure	316L stainless steel
Weight	4.0 Kg/ 8.82 lbs	3.7 Kg/ 8.16 lbs
Display	5-inch LCD capacitive touch screen	N/A

ORDERING INFORMATION

Name	Model		Order No.
BioAerosol Sampler-Remote \| Remote BAS	C530BS	MACHC530BS
BioAerosol Sampler-Remote \| Remote BAS	C530B		MACHC530B
Remote Sensor Protective Enclosure (With Screen)	PA520S		U2.S001
Remote Sensor Protective Enclosure (Without Screen)	PA520		U2.0001
Sampling Head	N/A		S2.S312

Notes:

1. In the model number, the letter following the number has the following meanings: B represents the model is equipped with a blower, and S represents the model is equipped with a screen.

2. The sampling head includes a petri dish holder, a sampling head, and a dust cover.
