Quick Editing Airborne Particle Counter for Lab

Availability:

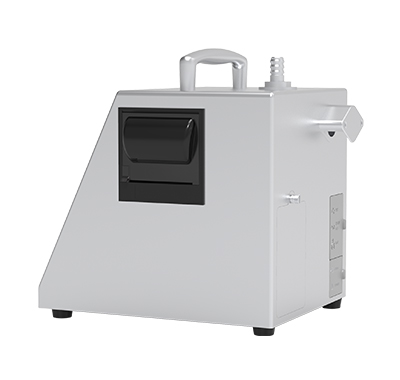

Quick Editing Airborne Particle Counter for Lab


Airborne Particle Counter (APC) is fully compliant with ISO14644-2015 and ISO21501-4 standard.

Capacitive touch screen8.0″

Zone20,000

Data 5 million sets

Portable 6.1Kg

Product details

Product Feature

8 inch capacitive touchscreen, quick response

Even with two pairs of latex gloves

Sealed 316L stainless steel enclosure and dust plug to prohibit dust and water

Automatically Collect Air Samples

APC data exceed the limit,triggers the BAS to start sampling


Info Alert

Description

CAL. Remind

The reminder starts reminding when the next calibration date is a certain number of days away. If it is less than the set days, ″** days since the last validation” will display upon startup. 【ON】indicates reminder is turned on.【OFF】indicates reminder is turned off.

Error Alarm

: Audible alarm is turned on. : Audible alarm is turned off. If laser or flow error occurs during sampling, the alarm will buzz when the audible alarm is turned on.

Counting Alarm

: Audible alarm is turned on. : Audible alarm is turned off. If the number of particles is over the threshold during the sampling, the alarm will buzz when audible alarm is turned on.


SPECIFICATIONS



FLOW RATE: A110: 100LPM±3%

A120: 50LPM±3%


A130: 28.3LPM±3%

SIZE RANGE: A110: 0.5µm-25µm

A120, A130: 0.3µm-25µm


SIZE CHANNELS: A110: 0.5µm, 1.0µm, 2.0µm, 3.0µm, 5.0µm, 10.0µm

A120, A130: 0.3µm, 0.5µm, 1.0µm, 3.0µm, 5.0µm, 10.0µm

SIZE RESOLUTION: <15% @ 0.5&micro;m (meets ISO 21501-4)

COUNT EFFICIENCY: A110: 50% &plusmn;20% for 0.5&micro;m, 100% &plusmn;10% for >0.75&micro;m (meets ISO 21501-4 and JIS B9921)

A120, A130: 50% &plusmn;20% for 0.3&micro;m, 100% &plusmn;10%for >0.45&micro;m (meets ISO 21501-4 and JIS B9921)

CONCENTRATION LIMIT: A110: 560,000 particles/ft&sup3;at 10% coincidence loss

A120: 840,000 particles/ft&sup3;at 10% coincidence loss

A130: 1,400,000 particles/ft&sup3;at 10% coincidence loss

ZERO COUNT: <1count/5min

EXHAUST: Internal HEPA filter (>99.997%@0.3&micro;m)

ZONE/ LOCATION: 20,000 rooms and 200,000 locations

SAMPLING TIME: 1 second to 168 hours

CYCLES: 1000 samples on one location

LASER SOURCE: Long life laser

DATA STORAGE: 3.5G, ≥5,000,000 sets of sample records

DISPLAY: 8” LCD capacitive touch screen

LANGUAGE: Chinese, English

DATA RELIABILITY: Compliant with 21 CFR Part 11

REPORTS: Compliant with ISO/EUGMP/CHINESEGMP/Fed Std

CALIBRATION FREQUENCY: Recommend at least once a year

DIMENSIONS (HXWXD): 254x204x263mm

WEIGHT: 6.1Kg (13.45lbs) (without battery)

ENCLOSURE: 316L Stainless Steel

POWER: AC 100-240V, 50 Hz/60 Hz

BATTERY: 10.8V, 9000mAh, rechargeable lithium battery

BATTERY ENDURANCE: A110: running for 4 hours

A120: running for 7 hours


A130: running for 9 hours

MAX POWER: consumption AC 90W

OPERATING CONDITIONS TEMPERATURE:: 5℃-35℃, relative humidity up to 95%

STORAGE CONDITIONS TEMPERATURE: -10℃-40℃, relative humidity up to 98%

SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1,FCC Part 15, Subpart B

WARRANTY: 2 years after activation
