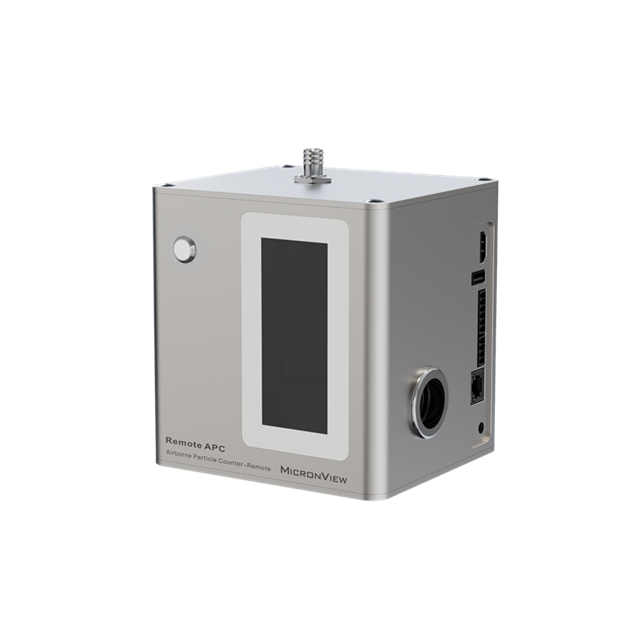

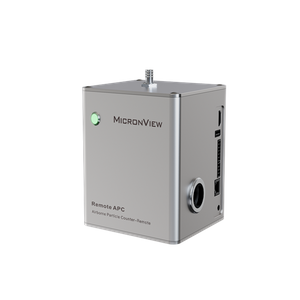

Airborne Particle Counter-Remote (A530BS)

SPECIFICATION SHEET

• FLOW RATE： 28.3LPM±5%

• SIZE RANGE： 0.5µm-25µm

• SIZE CHANNELS： 0.3µm, 0.5µm,  5.0µm

• SIZE RESOLUTION： <15% @ 0.5µm (meets ISO 21501-4)

• COUNT EFFICIENCY：  50% ±20% for 0.3µm, 100% ±10% for >0.45µm (meets ISO 21501-4 and JIS B9921)

• CONCENTRATION LIMIT：   450,000 particles/ft³ at 10% coincidence loss

• ZERO COUNT：  <1count/5min

• EXHAUST FILTRATION：  Internal HEPA filter (>99.999%@0.3µm)

• LASER SOURCE：  Long life laser

• BLOWER:     Built-in high-speed blower


• COMMUNICATION:    RJ45, RS485, HDMI and USB


• DATA STORAGE：  4GB,  with a default cache capacity of 1,000,000 datasets, which can be customized up to a                                                maximum of 5,000,000 datasets

• Alarm:    Visual alarm light

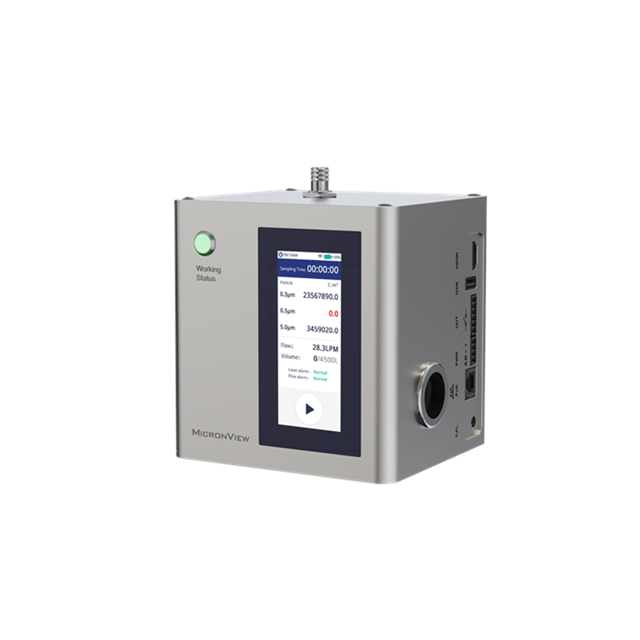

• DISPLAY：  4" LCD capacitive touch screen

• LANGUAGE：  Chinese, English

• CALIBRATION FREQUENCY：  Recommend once a year

• CALIBRATION STANDARD:   ISO 21501-4


• DIMENSIONS (H X W X D)：5.43×4.96×6.30 in, 138×126×160 mm

• WEIGHT：1.60 kg (3.53 lbs)

• ENCLOSURE：  Anodized aluminum

• POWER：  1）PoE Power Supply: PoE : IEEE 802.3bt (Type 3 / PoE++, Type 4)

                               2) Adapter Power Supply: Input: 100‒240V AC, 50/60Hz; Output: 24V DC. The output connector must be compatible with various standard interface types

• OPERATING CONDITIONS:   5-35℃(41-95℉), 5-90%RH non-condensing

• STORAGE CONDITIONS： 0-40℃(32-104℉), 5-95%RH non-condensing

• WARRANTY：  24 months (after activition or 6 months from ex-factory, whichever comes first)
