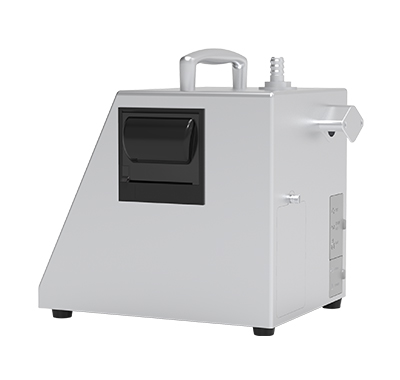

Battery Operated Airborne Particle Counter
Our products are mainly used in two areas-cleanrooms and compressed gas, to monitor microbial and particles.Products include BioAerosol Moni-toring System,Airborne Particle Counter,BioAerosol Air Sampler and com-pressed gas microbial and particle monitoring instruments.
SPECIFICATIONS
FLOW RATE： A110: 100LPM±3%
A120: 50LPM±3%
A130: 28.3LPM±3%
SIZE RANGE： A110: 0.5µm-25µm
A120, A130: 0.3µm-25µm
SIZE CHANNELS： A110: 0.5µm, 1.0µm, 2.0µm, 3.0µm, 5.0µm, 10.0µm
A120, A130: 0.3µm, 0.5µm, 1.0µm, 3.0µm, 5.0µm, 10.0µm
SIZE RESOLUTION： <15% @ 0.5µm (meets ISO 21501-4)
COUNT EFFICIENCY： A110: 50% ±20% for 0.5µm, 100% ±10% for >0.75µm (meets ISO 21501-4 and JIS B9921)
A120, A130: 50% ±20% for 0.3µm, 100% ±10%for >0.45µm (meets ISO 21501-4 and JIS B9921)
CONCENTRATION LIMIT： A110: 560,000 particles/ft³at 10% coincidence loss
A120: 840,000 particles/ft³at 10% coincidence loss
A130: 1,400,000 particles/ft³at 10% coincidence loss
ZERO COUNT： <1count/5min
EXHAUST： Internal HEPA filter (>99.997%@0.3µm)
ZONE/ LOCATION： 20,000 rooms and 200,000 locations
SAMPLING TIME： 1 second to 168 hours
CYCLES： 1000 samples on one location
LASER SOURCE： Long life laser
DATA STORAGE： 3.5G, ≥5,000,000 sets of sample records
DISPLAY： 8” LCD capacitive touch screen
LANGUAGE： Chinese, English
DATA RELIABILITY： Compliant with 21 CFR Part 11
REPORTS： Compliant with ISO/EUGMP/CHINESEGMP/Fed Std
CALIBRATION FREQUENCY： Recommend at least once a year
DIMENSIONS (HXWXD)： 254x204x263mm
WEIGHT： 6.1Kg (13.45lbs) (without battery)
ENCLOSURE： 316L Stainless Steel
POWER： AC 100-240V, 50 Hz/60 Hz
BATTERY： 10.8V, 9000mAh, rechargeable lithium battery
BATTERY ENDURANCE： A110: running for 4 hours
A120: running for 7 hours
A130: running for 9 hours
MAX POWER： consumption AC 90W
OPERATING CONDITIONS TEMPERATURE:： 5℃-35℃, relative humidity up to 95%
STORAGE CONDITIONS TEMPERATURE： -10℃-40℃, relative humidity up to 98%
SAFETY： EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1,FCC Part 15, Subpart B
WARRANTY： 2 years after activation
