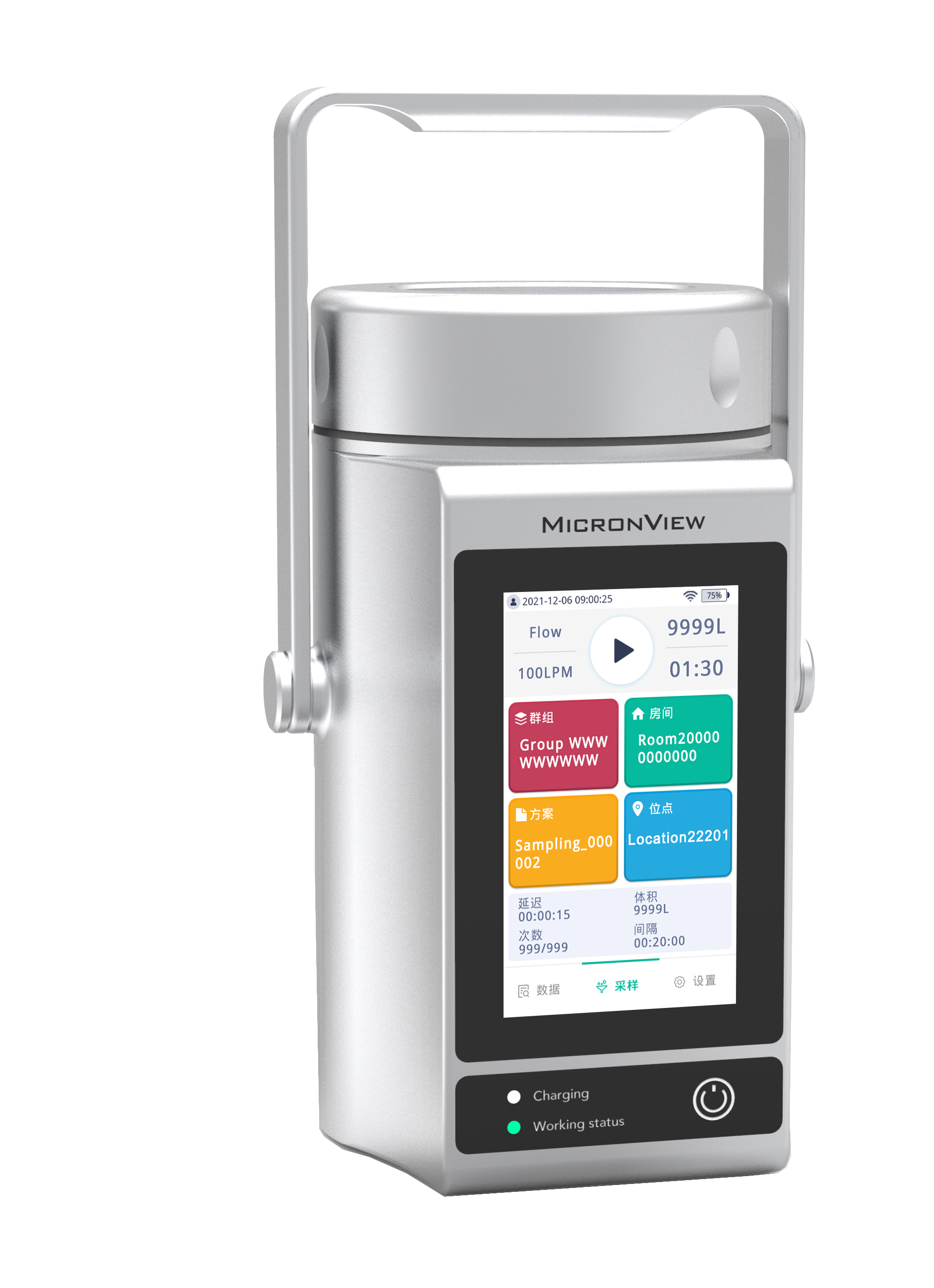

Data Integrity BioAerosol Sampler With LED Lighting
BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.
Flow rate 100L/min
Long battery life ≥10 hours (100L/min)
Data Storage 20,000 sets
Remote sampling 8 m
Product Features
4.3’’ rapid response capacitive touchscreen
All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion
Long Battery Life 100L/min≥10hours (60m³）
Flow Accuracy ±2.5%（100L/min）
Compliance with FDA21 CFR Part 11
Remote Sampling
Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)
Operation Interface
Data
- Intuitive sampling records
- Search function for quick search of records - One-click for exporting and printing
Sampling
- Intelligent sampling mode enables continuous and cyclic sampling
-The sampling process is clear and distinct
LED lighting and beep prompt error
Setup
- Smart Settings mode
- User-friendly input method
Return for Service
If the instrument failure cannot be solved and needs to return to us, please contact.
Contact information: service@micronview.com .
Warranty
We offer a two-year warranty for the BAS including hardware and software from the date of activation. It is considered activation when continues sampling for 40 minutes or sampling for 10 times. The repair service and parts replacement are warranted for 6 months from the date of the shipment.
In these cases, the warranty is void.
a. The warranty is void if the BAS is repaired and disassembled by the company or person without authorization.
b. Damage is due to mishandling or operator misuse.
We offer the free remote upgrade for lifetime when the users require during use.
The BAS is a precision instrument. It must be operated by trained laboratory personnel only.
Specification
FLOW RATE： 100L/min
FLOW RATE ACCURACY： ±2.5%
ZONE： Over 20000 locations
SAMPLING VOLUMES： 1-6000L, 6 default volumes
DELAY： 0-59minutes59seconds
CYCLES： 1-99cycles
INTERVAL： 0-59minutes59seconds
SAMPLING HEAD： Φ0.60mm*280holes
DIMENSIONS： Φ110mm, H: 202mm (without foot mat)
WEIGHT： 2.7kg(6.0lbs)
EXTERNAL SURFACE： Anodized aluminium
POWER： 24V±10% AC adapter
BATTERY： 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours
DATA STORAGE： 20000 sets of sample records
DISPLAY： 4.3" capacitive touch screen
LANGUAGE： Chinese, English
CALIBRATION FREQUENCY： Recommend once a year
OPERATING CONDITIONS TEMPERATURE：5℃-30℃, relative humidity up to 80%
STORAGE CONDITIONS TEMPERATURE： 0℃-40℃, relative humidity up to 80%
SAFETY： EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1
WARRANTY： 2 years after activation
