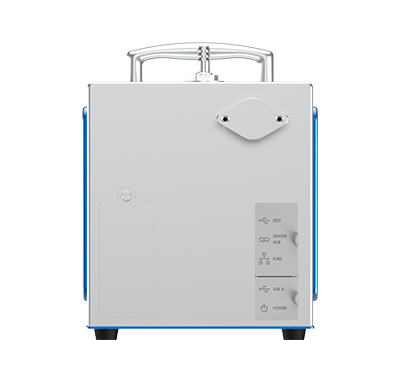

High Effective BioAerosol Monitoring System for Microbial

Availability:

High Effective BioAerosol Monitoring System for Microbial



PRODUCT FEATURES

Continuous Monitoring 24/7 continuous monitoring

lmmediate Data

Real-time data for both particlesand biological particles

People Oriented

Efficient user oriented design

Stable and reliable

First truly portable microbial monitoring device

Compliance with FDA21 CFR Part 11


SPECIFICATIONS



SIZE RANGE: 0.5µm - 25µm

LASER SOURCE: Long life laser

COUNT EFFICIENCY: 50% ±20% for 0.5µm, 100% ±10% for >0.75µm (meets ISO 21501-4 and JIS B9921)

FLOW RATE: 5LPM±3%

ZONE / LOCATION: 20,000 rooms and 200,000 locations

SAMPLING MODE: Manual, auto, beep, cumulative count Σ/ differential count Δ or concentration

CONCENTRATION LIMIT: 4,000,000 particles/ft³at 10% coincidence loss

EXHAUST: Internal HEPA filter (>99.997%@0.3µm)

COMMUNICATION: RJ45, USB, SENSER-HUB, WIFI

EXPORT FILE: PDF file or EXCEL file

DATA STORAGE: 119G

DATA SECURITY: Authority management, authority level divide into admin, operator and supervisor

ALARM: Audible built-in alarm

DIMENSIONS (HxWxD): 10x7.87x10.39 in/255x200x264mm (with handle and foot mat)

WEIGHT: 12.8lbs/5.8Kg (without battery)

ENCLOSURE: 316L Stainless Steel and anodized aluminum

OPERATING CONDITIONS: Temperature: 5°C -35° C / 41°F - 95°F, Relative humidity: 5-90% non-condensing


SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2:2:2013, EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1, FCC Part 15, Subpart B, EN 300 328 V2.1.1: 2016, ETSI EN 301 489-1 V2.2.0: 2017, ETSI EN 301 489-17 V3.2.0: 2017, EN 62311:2008, EN 62479: 2010
