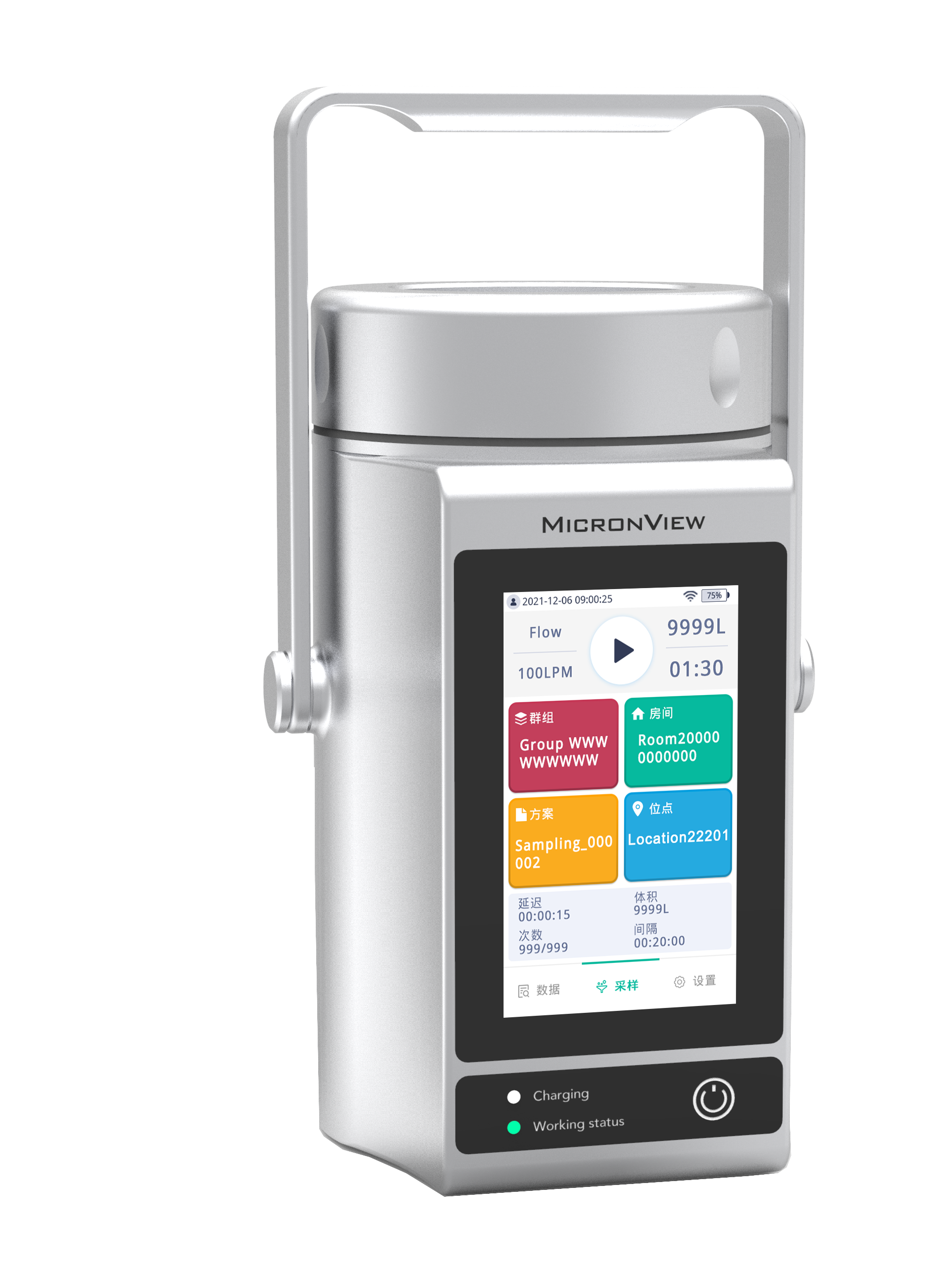

High Performance BioAerosol Sampler With LED Lighting
BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.
Flow rate 100L/min
Long battery life ≥10 hours (100L/min)
Data Storage 20,000 sets
Remote sampling 8 m
Product Features
4.3’’ rapid response capacitive touchscreen
All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion
Long Battery Life 100L/min≥10hours (60m³）
Flow Accuracy ±2.5%（100L/min）
Compliance with FDA21 CFR Part 11
Remote Sampling
Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)
Operation Interface
Data
- Intuitive sampling records
- Search function for quick search of records - One-click for exporting and printing
Sampling
- Intelligent sampling mode enables continuous and cyclic sampling
-The sampling process is clear and distinct
LED lighting and beep prompt error
Setup
- Smart Settings mode
- User-friendly input method
Troubleshooting and Maintenance
Troubleshooting
4
| Device does not turn on.
| Internal short circuit. | Observe the indicator light when supply with AC adapter. If the light is off, return to us for service. IF the light is on, internal short circuit is excluded. |
The AC adapter doesn’t work. | When the problem persists after plug the AC adapter again, replace the AC adapter. |
Internal parts failure. | Return to us or the local distributor for service. |
Power button failure. | Return to us or the local distributor for service. |
Low battery | Plug in the AC adapter and restart the device. |
5
| Battery doesn’t charge when AC adapter is working properly.
| Battery is in poor contact. | Check and plug in the battery again. |
Battery failure. | Contact the factory to replace the battery. |
Charging port failure. | Return to us or the local distributor for service. |
6
| Battery can’t be fully charged when AC adapter supply.
| Battery aging. | Contact the factory to replace the battery. |
Internal parts failure. | Return to us or the local distributor for service. |
Specification
FLOW RATE： 100L/min
FLOW RATE ACCURACY： ±2.5%
ZONE： Over 20000 locations
SAMPLING VOLUMES： 1-6000L, 6 default volumes
DELAY： 0-59minutes59seconds
CYCLES： 1-99cycles
INTERVAL： 0-59minutes59seconds
SAMPLING HEAD： Φ0.60mm*280holes
DIMENSIONS： Φ110mm, H: 202mm (without foot mat)
WEIGHT： 2.7kg(6.0lbs)
EXTERNAL SURFACE： Anodized aluminium
POWER： 24V±10% AC adapter
BATTERY： 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours
DATA STORAGE： 20000 sets of sample records
DISPLAY： 4.3" capacitive touch screen
LANGUAGE： Chinese, English
CALIBRATION FREQUENCY： Recommend once a year
OPERATING CONDITIONS TEMPERATURE：5℃-30℃, relative humidity up to 80%
STORAGE CONDITIONS TEMPERATURE： 0℃-40℃, relative humidity up to 80%
SAFETY： EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1
WARRANTY： 2 years after activation
