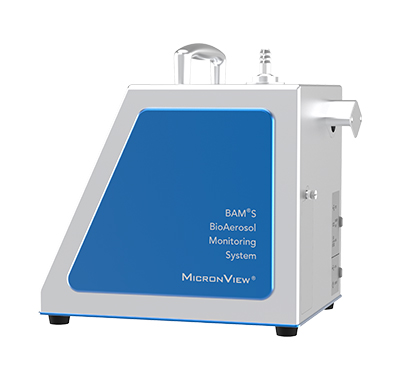

Mobile BioAerosol Monitoring System for Sterility Test

Availability:

Mobile BioAerosol Monitoring System for Sterility Test

BioAerosol Monitoring System (BAMS) is used for real-time environmental monitoring of microorganisms in the air.

Capacitive touch screen 8.0″

Portable 5.8Kg

Continuous monitoring 7*24hr

Mass storage 119G





SPECIFICATIONS



SIZE RANGE:  0.5µm - 25µm

LASER SOURCE:  Long life laser

COUNT EFFICIENCY:  50% ±20% for 0.5µm, 100% ±10% for >0.75µm (meets ISO 21501-4 and JIS B9921)

FLOW RATE:  5LPM±3%

ZONE / LOCATION:  20,000 rooms and 200,000 locations

SAMPLING MODE:  Manual, auto, beep, cumulative count Σ/ differential count Δ or concentration

CONCENTRATION LIMIT:  4,000,000 particles/ft³at 10% coincidence loss

EXHAUST:  Internal HEPA filter (>99.997%@0.3µm)

COMMUNICATION:  RJ45, USB, SENSER-HUB, WIFI

EXPORT FILE:  PDF file or EXCEL file

DATA STORAGE:  119G

DATA SECURITY:  Authority management, authority level divide into admin, operator and supervisor

ALARM:  Audible built-in alarm

DIMENSIONS (HxWxD):  10x7.87x10.39 in/255x200x264mm (with handle and foot mat)

WEIGHT:  12.8lbs/5.8Kg (without battery)

ENCLOSURE:  316L Stainless Steel and anodized aluminum

OPERATING CONDITIONS:  Temperature: 5°C -35° C / 41°F - 95°F, Relative humidity: 5-90% non-condensing

SAFETY:  EN 61010-1:2010, EN 61326-1:2013, EN 61326-2:2:2013, EN 60825-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007+A1, FCC Part 15, Subpart B, EN 300 328 V2.1.1: 2016, ETSI EN 301 489-1 V2.2.0: 2017, ETSI EN 301 489-17 V3.2.0: 2017, EN 62311
