Multipurpose Dual-Flow BioAerosol Sampler

Availability:

Multipurpose Dual-Flow BioAerosol Sampler

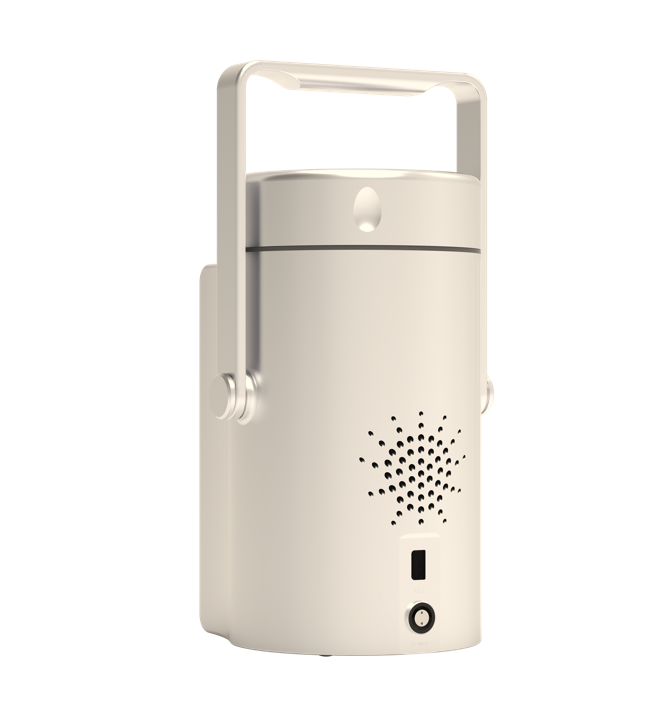

Dual-Flow BioAerosol Sampler (DBAS) is an air sampler with high efficient, strong power and stable performance. It can be widely used in food and beverage, pharmaceutical, electronics, health care industries and others. Based on Anderson impacting method, the air is inhaled by built-in pump and impacts on the culture medium, through the porous sampling head, to capture the microbes in the air. DBAS monitors the sampling volume by built-in flow sensor and adjusts the flow rate dynamically in real time to ensure the accuracy of the sampling flow rate. Besides general sampling, DBAS can also achieve remote (such as isolator) sampling with remote sampling head.


Product Features

4.3’’ capacitive touchscreen,rapid response

All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion

Long Battery Life

100L/min≥10hours (60m³)

200L/min≥4hours (48m³)

Flow Accuracy

±2.5%(100L/min)

±3% (200L/min)

Compliance with FDA21 CFR Part 11

Remote Sampling

Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)

*The remote/isolator sampling can only support the flow rate of 100L/min*

Operation Interface

Data

- Intuitive sampling records

- Search function for quick search of records - One-click for exporting and printing

Sampling

- Intelligent sampling mode enables continuous and cyclic sampling

-The sampling process is clear and distinct

LED lighting and beep prompt error

Setup

- Smart Settings mode

- User-friendly input method


Specification


FLOW RATE: 100L/min 200L/min

FLOW RATE ACCURACY: ±2.5%

ZONE: Over 20000 locations

SAMPLING VOLUMES: 1-6000L, 6 default volumes

DELAY: 0-59minutes59seconds

CYCLES: 1-99cycles

INTERVAL: 0-59minutes59seconds

SAMPLING HEAD: Φ0.85mm*280holes

DIMENSIONS: Φ110mm, H: 202mm (without foot mat)

WEIGHT: 2.7kg(6.0lbs)

EXTERNAL SURFACE: Anodized aluminium

POWER: 24V±10% AC adapter

BATTERY: 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours

DATA STORAGE: 20000 sets of sample records

DISPLAY: 4.3" capacitive touch screen

LANGUAGE: Chinese, English

CALIBRATION FREQUENCY: Recommend once a year

OPERATING CONDITIONS TEMPERATURE:5℃-30℃, relative humidity up to 80%

STORAGE CONDITIONS TEMPERATURE: 0℃-40℃, relative humidity up to 80%

SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1

WARRANTY: 2 years after activation
