Portable BioAerosol Sampler With 12V DC Battery

Availability:

Portable BioAerosol Sampler With 12V DC Battery

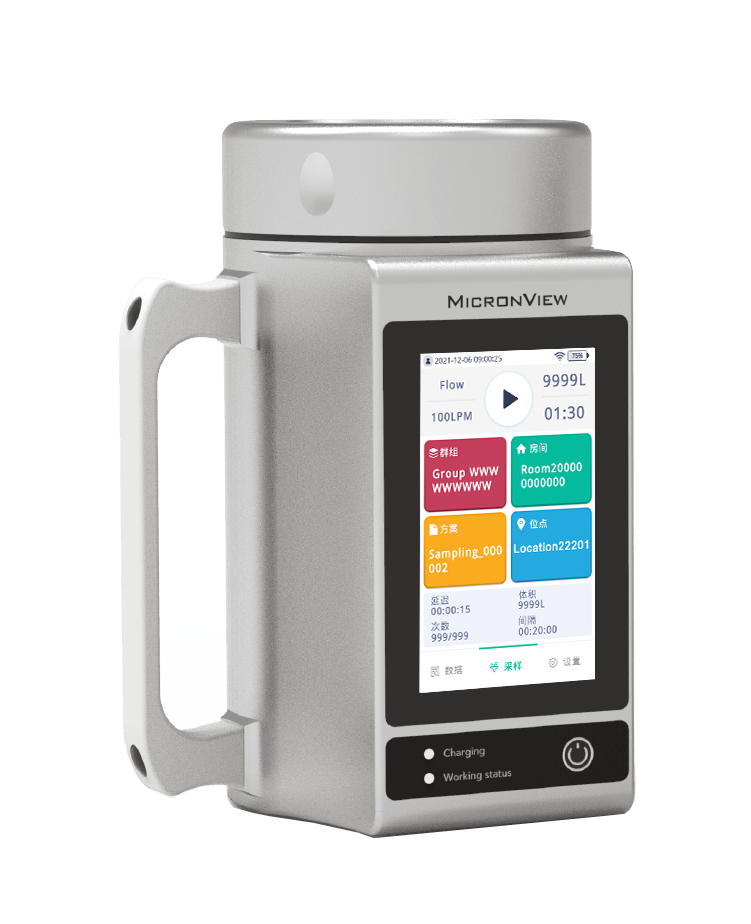

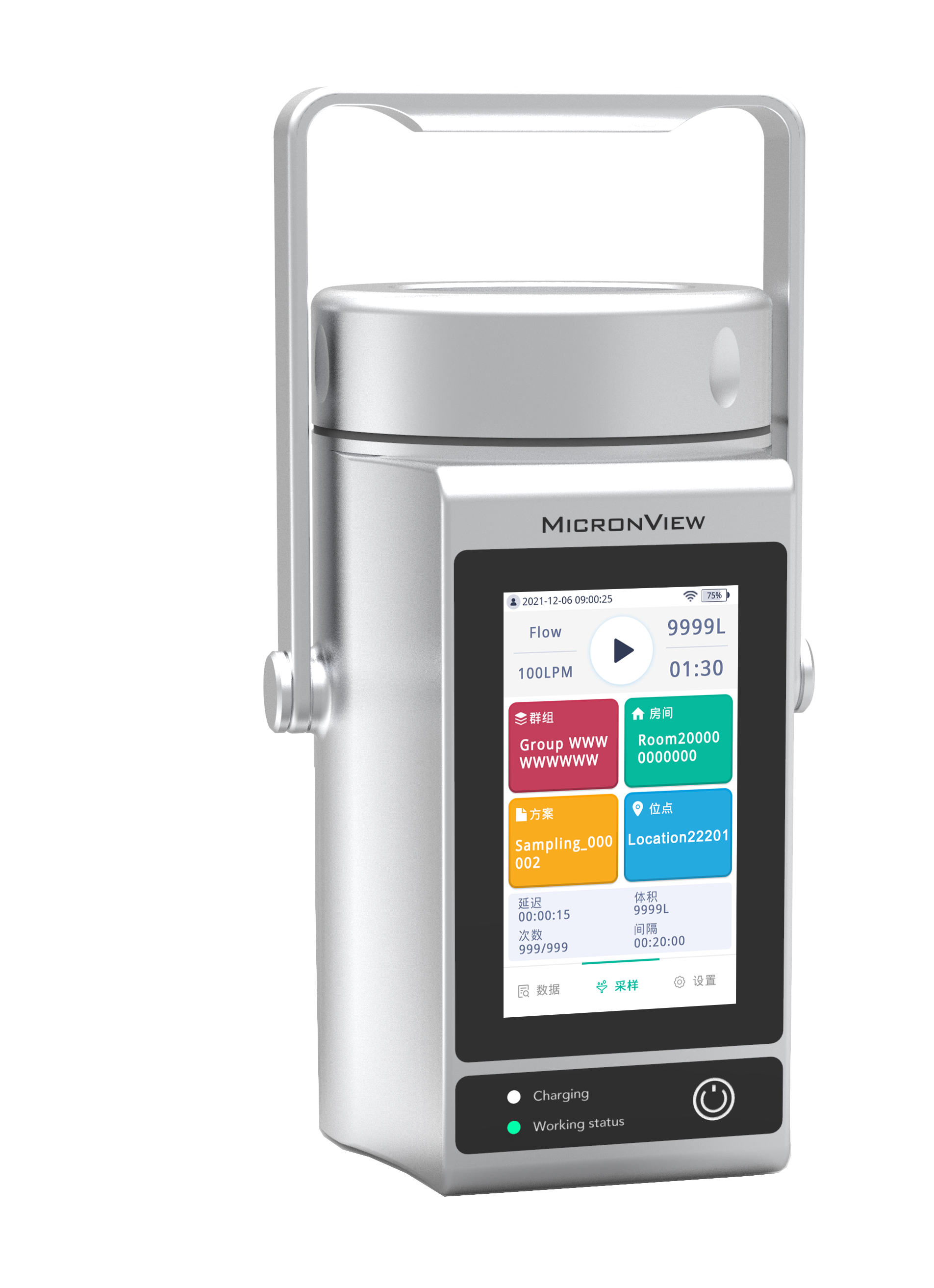

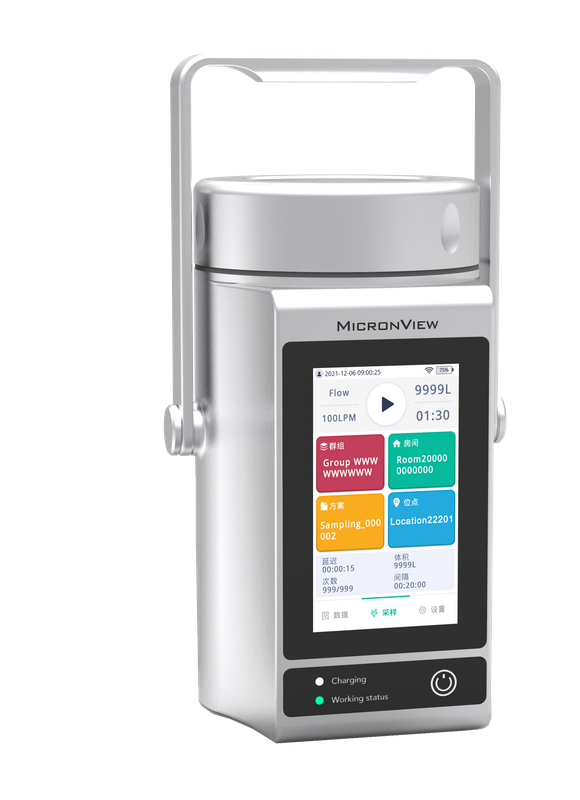

BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.

Flow rate 100L/min

Long battery life ≥10 hours (100L/min)

Data Storage 20,000 sets

Remote sampling 8 m

Product Features

4.3’’ rapid response capacitive touchscreen

All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion

Long Battery Life 100L/min≥10hours (60m³)

Flow Accuracy ±2.5%(100L/min)

Compliance with FDA21 CFR Part 11

Remote Sampling

Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)

Operation Interface

Data

- Intuitive sampling records

- Search function for quick search of records - One-click for exporting and printing

Sampling

- Intelligent sampling mode enables continuous and cyclic sampling

-The sampling process is clear and distinct

LED lighting and beep prompt error

Setup

- Smart Settings mode

- User-friendly input method


Device

Device is used to view the system information of device, set the calibration reminder and software update. See chart 5-3-22.

TouchDevice Infoicon to view the system information of device. It consists of model, hardware version, software version, serial number, total running time, calibration date, etc. See chart 5-3-23.

Cal. Reminder is used for reminding the operator the days for the next calibration date. The reminder starts reminding when the next calibration date is a certain number of days away. If it is less than the set day, the prompt message “** days for the next calibration” will appear when the device is power on. When exceeding the calibration due date, the prompt message “** days exceed for the calibration effective date” will appear when the device is power on. Touch【Calibration】icon to set the time to remind. Touch 【Enable】icon or【Disable】icon to select open or close the reminder. See chart 5-3-24.


Specification

FLOW RATE: 100L/min

FLOW RATE ACCURACY: ±2.5%

ZONE: Over 20000 locations

SAMPLING VOLUMES: 1-6000L, 6 default volumes

DELAY: 0-59minutes59seconds

CYCLES: 1-99cycles

INTERVAL: 0-59minutes59seconds

SAMPLING HEAD: Φ0.60mm*280holes

DIMENSIONS: Φ110mm, H: 202mm (without foot mat)

WEIGHT: 2.7kg(6.0lbs)

EXTERNAL SURFACE: Anodized aluminium

POWER: 24V±10% AC adapter

BATTERY: 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours

DATA STORAGE: 20000 sets of sample records

DISPLAY: 4.3" capacitive touch screen

LANGUAGE: Chinese, English

CALIBRATION FREQUENCY: Recommend once a year

OPERATING CONDITIONS TEMPERATURE:5℃-30℃, relative humidity up to 80%

STORAGE CONDITIONS TEMPERATURE: 0℃-40℃, relative humidity up to 80%

SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1

WARRANTY: 2 years after activation
