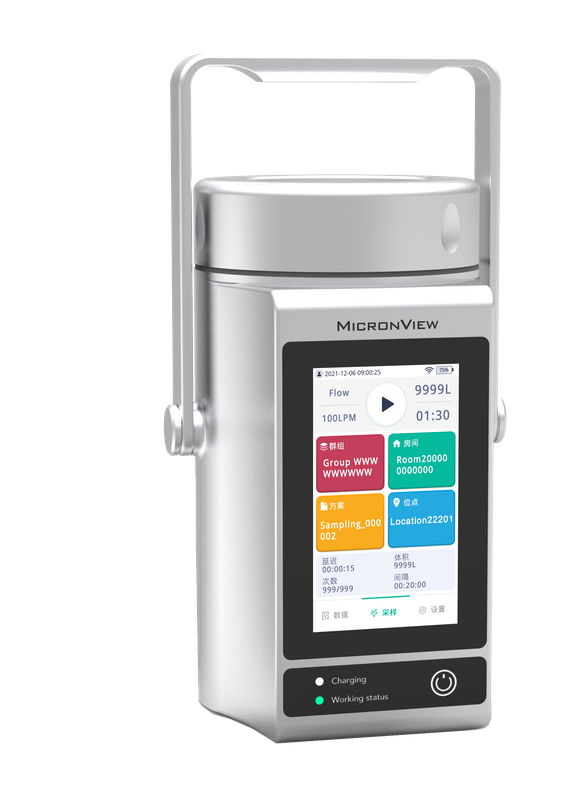

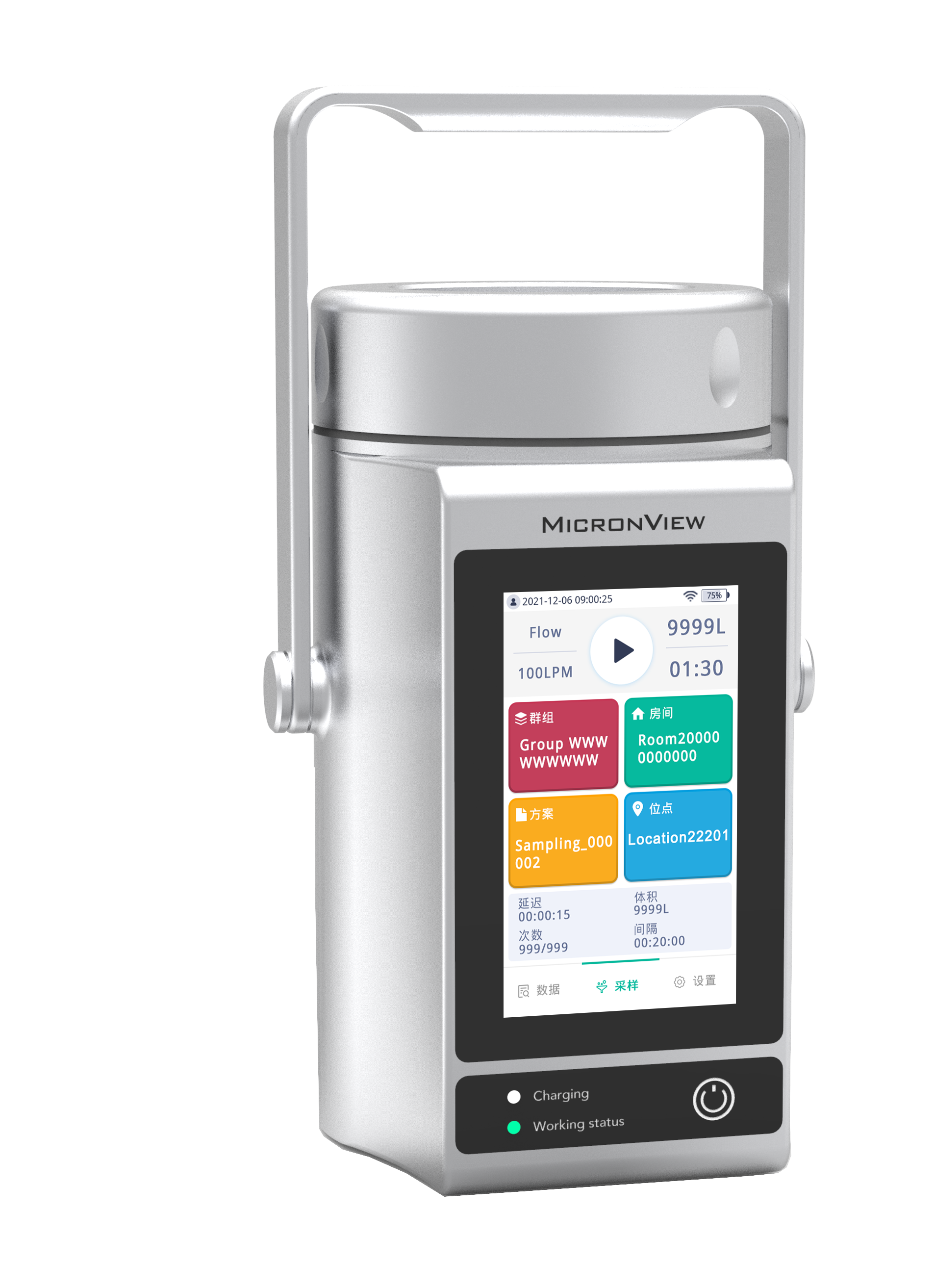

Portable BioAerosol Sampler With 220V AC Battery

Availability:

Portable BioAerosol Sampler With 220V AC Battery


BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.

Flow rate 100L/min

Long battery life ≥10 hours (100L/min)

Data Storage 20,000 sets

Remote sampling 8 m

Product Features

4.3’’ rapid response capacitive touchscreen

All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion

Long Battery Life 100L/min≥10hours (60m³)

Flow Accuracy ±2.5%(100L/min)

Compliance with FDA21 CFR Part 11

Remote Sampling

Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)

Operation Interface

Data

- Intuitive sampling records

- Search function for quick search of records - One-click for exporting and printing

Sampling

- Intelligent sampling mode enables continuous and cyclic sampling

-The sampling process is clear and distinct

LED lighting and beep prompt error

Setup

- Smart Settings mode

- User-friendly input method


Isokinetic sampling

When sampling in the same direction (the direction of airflow into the sampling head inlet and the direction of the sampled unidirectional flow) the average velocity of air entering the sampling head inlet is the same as the average velocity of the unidirectional flow at that location.

Simple expression: air supply velocity = isokinetic sampling velocity = sampling flow rate / sampling head cross-sectional area



Translated with www.DeepL.com/Translator (free version)



Specification

FLOW RATE: 100L/min

FLOW RATE ACCURACY: ±2.5%

ZONE: Over 20000 locations

SAMPLING VOLUMES: 1-6000L, 6 default volumes

DELAY: 0-59minutes59seconds

CYCLES: 1-99cycles

INTERVAL: 0-59minutes59seconds

SAMPLING HEAD: Φ0.60mm*280holes

DIMENSIONS: Φ110mm, H: 202mm (without foot mat)

WEIGHT: 2.7kg(6.0lbs)

EXTERNAL SURFACE: Anodized aluminium

POWER: 24V±10% AC adapter

BATTERY: 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours

DATA STORAGE: 20000 sets of sample records

DISPLAY: 4.3" capacitive touch screen

LANGUAGE: Chinese, English

CALIBRATION FREQUENCY: Recommend once a year

OPERATING CONDITIONS TEMPERATURE:5℃-30℃, relative humidity up to 80%

STORAGE CONDITIONS TEMPERATURE: 0℃-40℃, relative humidity up to 80%

SAFETY: EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1

WARRANTY: 2 years after activation
