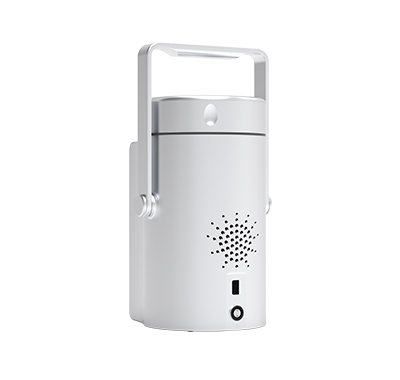

Touch Screen BioAerosol Sampler for Cleanroom

Product Features

4.3’’ rapid response capacitive touchscreen

All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion

Long Battery Life 100L/min≥10hours (60m³）

Flow Accuracy  ±2.5%（100L/min）

Compliance with FDA21 CFR Part 11

Remote Sampling

Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)

Specification

FLOW RATE： 100L/min

FLOW RATE ACCURACY： ±2.5%

ZONE： Over 20000 locations

SAMPLING VOLUMES： 1-6000L, 6 default volumes

DELAY： 0-59minutes59seconds

CYCLES： 1-99cycles

INTERVAL： 0-59minutes59seconds

SAMPLING HEAD： Φ0.60mm*280holes

DIMENSIONS： Φ110mm, H: 202mm (without foot mat)

WEIGHT： 2.7kg(6.0lbs)

EXTERNAL SURFACE： Anodized aluminium

POWER： 24V±10% AC adapter

BATTERY： 10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours

DATA STORAGE： 20000 sets of sample records

DISPLAY： 4.3" capacitive touch screen

LANGUAGE： Chinese, English

CALIBRATION FREQUENCY： Recommend once a year

OPERATING CONDITIONS TEMPERATURE：5℃-30℃, relative humidity up to 80%

STORAGE CONDITIONS TEMPERATURE： 0℃-40℃, relative humidity up to 80%

SAFETY： EN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1

WARRANTY： 2 years after activation
