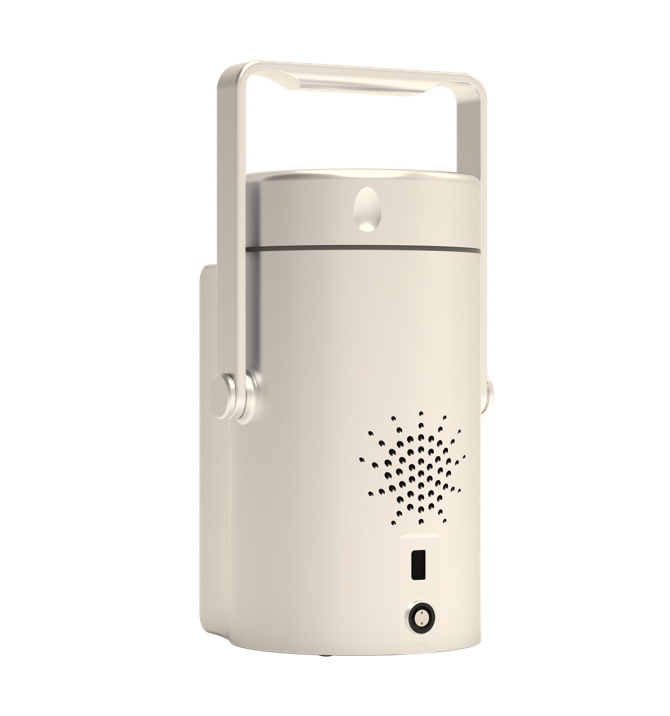

Touch Screen Dual-Flow BioAerosol Sampler


Touch Screen Dual-Flow BioAerosol Sampler


MicronView takes advantage of optics and biotechnology to achieve fast,real-time sterile environment monitoring,by providing advanced monitoring instruments and consumables for production environments and finished products of food,pharmaceutical and cosmetic industries.


Our products are mainly used in two areas-cleanrooms and compressed gas, to monitor microbial and particles.Products include BioAerosol Moni-toring System,Airborne Particle Counter,BioAerosol Air Sampler and com-pressed gas microbial and particle monitoring instruments.Our advanced and comprehensive real time solutions help environmental monitoring personnel to detect microbial and particulate pollution in real time,enabling the investigation of pollution sources in less time, and the reliable electronic compressed gas control system makes the detection of microbes and particles in compressed gas easier and more efficient than ever.


BioAerosol Air Sampler (BAS) is a high performance air sampler, based on the principle of Andersen impact method.

Flow rate 100L/min

Long battery life ≥10 hours(100L/min)

Data Storage 20,000 sets

Remote sampling  8 m


Product Features

4.3’’ capacitive touchscreen,rapid response

All components and circuits interfaces are isolated from the external environment ro prevent oxidant intrusion

Long Battery Life

100L/min≥10hours (60m³

200L/min≥4hours (48m³

Flow Accuracy


±3% (200L/min

Compliance with FDA21 CFR Part 11

Remote Sampling

Powerful and stabilized pump to support Remote/Isolator sampling(up to 8m)

*The remote/isolator sampling can only support the flow rate of 100L/min*

Operation Interface


- Intuitive sampling records

- Search function for quick search of records - One-click for exporting and printing


- Intelligent sampling mode enables continuous and cyclic sampling

-The sampling process is clear and distinct

LED lighting and beep prompt error


- Smart Settings mode

- User-friendly input method




FLOW RATE100L/min    200L/min


ZONEOver 20000 locations

SAMPLING VOLUMES1-6000L, 6 default volumes




SAMPLING HEADΦ0.85mm*280holes

DIMENSIONSΦ110mm, H: 202mm (without foot mat)


EXTERNAL SURFACEAnodized aluminium

POWER24V±10% AC adapter

BATTERY10.8V, 6800mAh rechargeable lithium battery, running for over 10 hours

DATA STORAGE20000 sets of sample records

DISPLAY4.3" capacitive touch screen

LANGUAGEChinese, English

CALIBRATION FREQUENCYRecommend once a year

OPERATING CONDITIONS TEMPERATURE5℃-30℃, relative humidity up to 80%

STORAGE CONDITIONS TEMPERATURE0℃-40℃, relative humidity up to 80%

SAFETYEN 61010-1:2010, EN 61326-1:2013, EN 61326-2-2:2013,EN 61000-6-1:2007, EN 61000-6-3:2007+A1

WARRANTY2 years after activation
